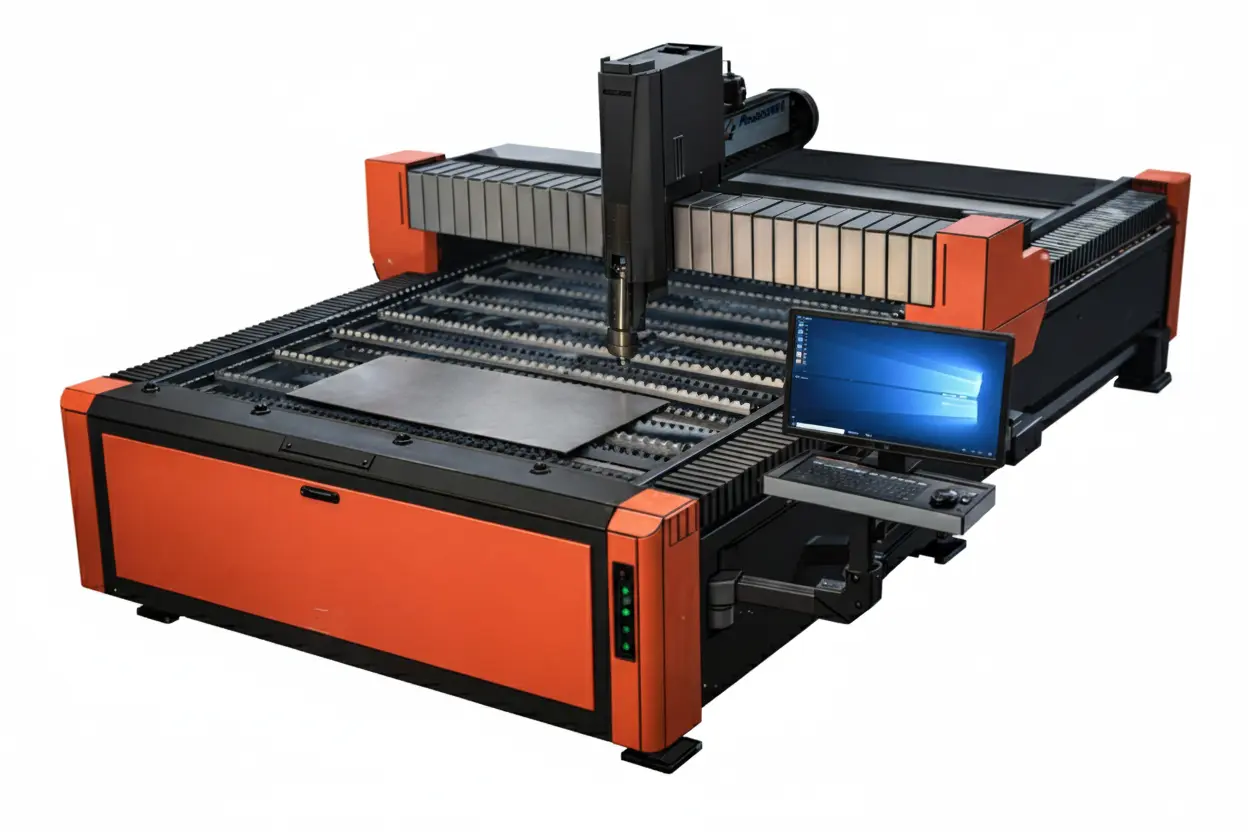

FB-16-1530 CNC Fiber Laser – 1000W Cutting System
The FB-16-1530 CNC Fiber Laser system delivers efficient and precise metal cutting capabilities. Engineered for stability and high performance, this machine utilizes advanced inverter technology for optimal power utilization and minimal energy consumption. Its robust construction ensures durability and consistent operational reliability. The system is designed to handle a wide range of metal materials, offering exceptional cutting quality across various thicknesses.
Super save energy
Europe certified
1000W Cutting Capacities:
- Steel: 12mm
- Stainless Steel: 5mm
- Aluminum: 3mm
- Copper: 3mm
- Aluminum-Zinc Alloy: 3mm
The FB-16-1530 CNC Fiber Laser system features a highly stable laser source, offering cost-effective operation and superior performance in metal cutting due to its low power consumption. Our CNC Fiber lasers are equipped with modern inverters that deliver high power output while consuming minimal electricity.
This laser system is capable of cutting steel, aluminum, stainless steel, copper, brass, and other metal types. The machine’s substantial and durable construction contributes to its operational stability.
Download Brochure: Click Here
The CNC Laser system is equipped with wheels for material handling and easy operation. Integrated rollers facilitate smooth loading and unloading of metal sheets.
Contact Information: Tel. 082-972-9329 | [email protected]
We are committed to quality to ensure you receive a high-performance machine. You can be confident in the reliable operation of your purchased equipment.
Video
Cuttable Materials:
Machine Specifications:
Contact Information: Tel. 082-972-9329 | [email protected]
Sample Works:
| 1000W Laser Cutting Specification | |||||
| Material | Thickness (mm) | Speed (m/min) | Pressure (Mpa) | De-Focus | Head Height (mm) |
| Steel (O2) | 1 | 17-20 | 1 | 0 | 1 |
| 2 | 6-7 | 0.6-0.8 | +2.5 | 1 | |
| 3 | 3.5-4.5 | 0.4-0.6 | +2.5 | 1 | |
| 4 | 2.5-3 | 0.2-0.4 | +2.5 | 1 | |
| 5 | 1.8-2.3 | 0.2-0.4 | +2.5 | 1 | |
| 6 | 1.2-1.8 | 0.1-0.2 | +2.5 | 1 | |
| 8 | 1-1.2 | 0.1-0.2 | +2.5 | 1 | |
| 10 | 0.7-0.9 | 0.1-0.2 | +2.5 | 1 | |
| 12 | 0.4-0.7 | 0.1-0.2 | +2.5 | 1 | |
| Stainless Steel (N2) | 1 | 17-20 | 1 | 0 | 0.6 |
| 2 | 6-7 | 1.5 | -1 | 0.6 | |
| 3 | 2-3 | 1.5 | -2 | 0.6 | |
| 4 | 1-1.5 | 2 | -2 | 0.6 | |
| 5 | 0.5-1 | 2 | -3 | 0.6 | |
| Zinc (O2) | 1 | 17-20 | 1 | 0 | 1 |
| 2 | 5-7 | 0.6-0.8 | +2.5 | 1 | |
| 3 | 1.5-1.7 | 0.4-0.6 | +2.5 | 1 | |
| Aluminum (N2) | 1 | 8 | 1 | 0 | 0.6 |
| 2 | 4 | 1.3 | -1 | 0.6 | |
| 3 | 1 | 1.3 | -1 | 0.6 | |
| Copper (N2) | 1 | 12-14 | 1 | +0.5 | 0.6 |
| 2 | 2 | 1.3 | -0.5 | 0.6 | |
| 3 | 0.5 | 1.3 | -1 | 0.6 | |

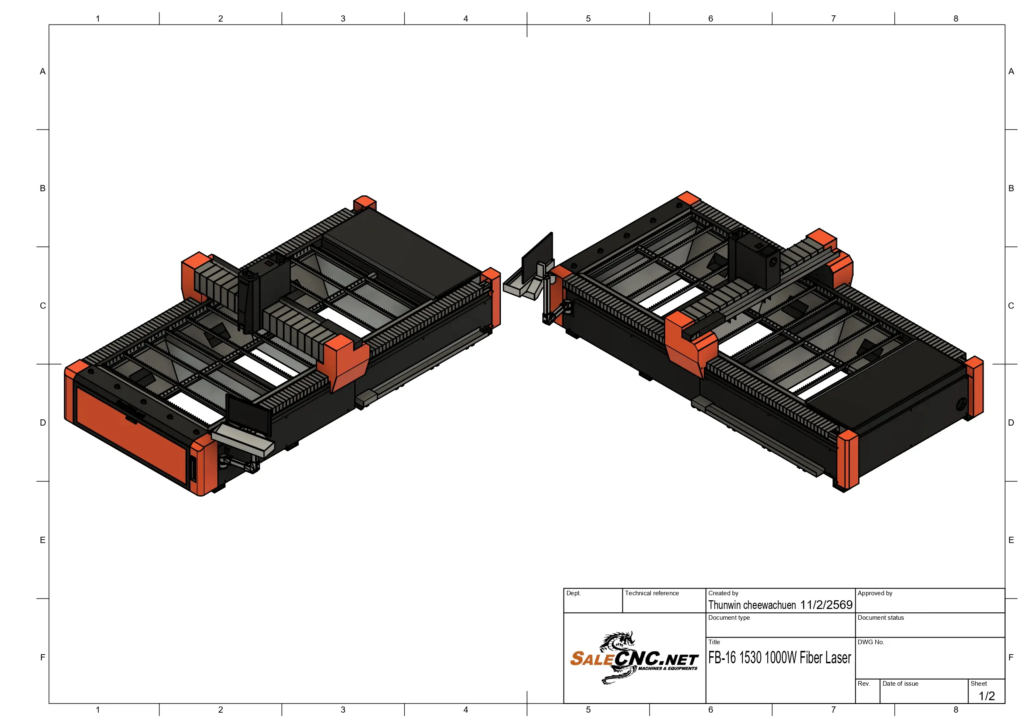

Machine Dimensions:
