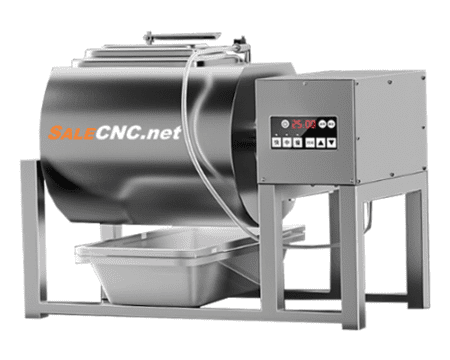

Automatic Rotating Vacuum Marinade Mixing Machine – 12 Liter Capacity
Marinade Mixing Machine
The Automatic Meat Marinade Machine is an essential food processing equipment designed to optimize workflow efficiency. It ensures that marinades and sauces penetrate meat uniformly and rapidly, reducing marination time from overnight to just a few hours. The operation is user-friendly, requiring only a few button presses to prepare meat for use. Constructed from food-grade 304 stainless steel, the machine is rust-resistant, hygienic, and compliant with industry standards.
Specification
Warning: Ensure proper grounding before operating this product.
Recommended Meat and Marinade/Sauce Loading for Optimal Performance:
- 12 Liter Model: Load 7-10 kg of meat + marinade/sauce.
- 60 Liter Model: Load 30-35 kg of meat + marinade/sauce.
- 80 Liter Model: Load 40-45 kg of meat + marinade/sauce.
- 150 Liter Model: Load 75-90 kg of meat + marinade/sauce.
Automatic Vacuum Meat Marinade Machine
Operating Tutorial: Automatic Vacuum Marinade Mixing Machine
Stock Product
Example of Chicken Marinated with Vacuum Tumbler for 30 Minutes:
The Pure Copper Core Motor
- Adopts a pure copper core integrated geared motor with low resistance.
- When working, it exhibits low heat generation, low noise, and low power consumption.
- The service life is significantly higher than other motors.
- Low noise. Low heat generation. Low power consumption.
Operating Demonstration Video
Automatic Vacuum Meat Marinade Machine
Operating Tutorial: Automatic Vacuum Marinade Mixing Machine
- Disconnect the air hose for connection to the air pump.
- Open the marinade drum lid.
- Add the meat and marinade/sauce mixture to the drum.
- Close the marinade drum lid.
- Connect the air hose to the drum valve.
- Open the valve.
- Press the air release button (observe the indicator needle).
- When the sensor beeps, disconnect the air hose.
- Press the start button.
- The machine is now in operation.
- Press the stop button.
- Press the button to rotate the drum.
- Close the valve.
- Open the marinade drum lid.
- Press the button when the drum is aligned with the tray.
Fault Analysis and Elimination
| FAULT PHENOMENON | POSSIBILITY ANALYSIS | FAULT ELIMINATION |
|---|---|---|
| The machine doesn’t work when turn on the power | The switch is broken | Replacing switch |
| The machine doesn’t work when turn on the power | Line problem | Check if the thread is loose, or the wire is burnt. If it is, then rewiring |
| The machine doesn’t work when turn on the power | The motor is broken | Repairing or replacing the motor |
| Timing is not accurate | The timer is broken | Replacing the timer |
