Description

SaleCNC Distributes Automatic Egg Roll Machines, Egg Roll Ovens, Ice Cream Cone Molds, Electric Systems with 12 Dual Heads.

Operational Video:

Machine Description:

(Egg Roll Cutting Machine not included in the Egg Roll Making Machine set)

Product Specifications

1 Station requires 10A; 12 stations x 10A = 120A + 10A for motor drive = 130A.
Calculated at 220V: approximately 130A * 220V = 28600W (28.6KW).

**Minimum roll diameter is 16mm (1.6cm).**
**Auto Feed + Semi Roller are optional features.**

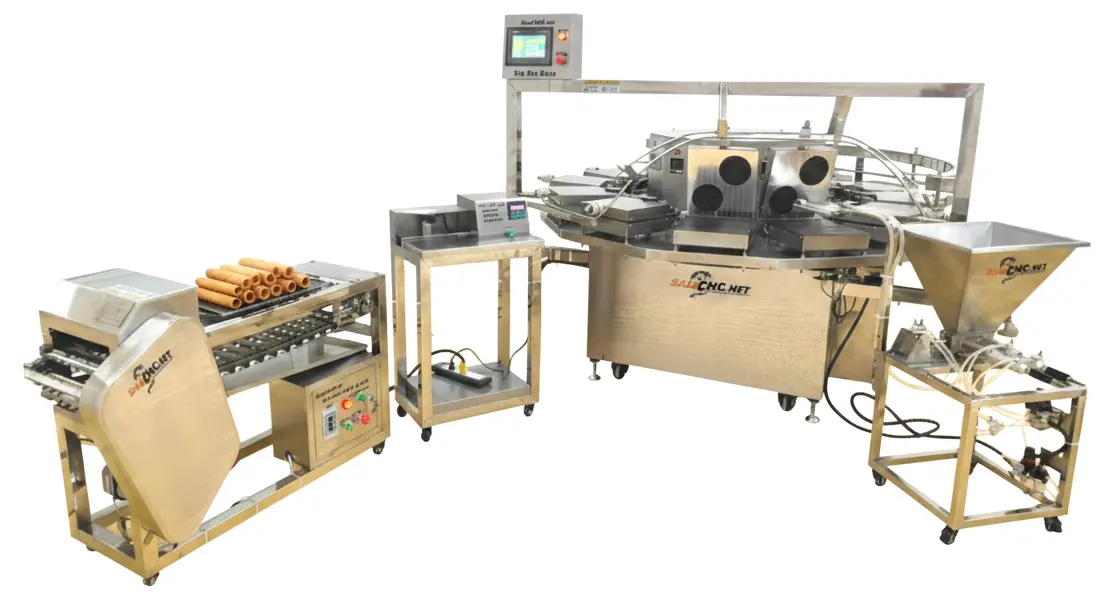

The Egg Roll Making Machine Set Includes:

1. Automatic Egg Roll Making Oven

(Egg Roll Cutting Machine not included in the Egg Roll Making Machine set)

2. Automatic Batter Dispensing Machine

3. Semi-Automatic Rolling Machine

(Egg Roll Cutting Machine not included in the Egg Roll Making Machine set)

Versatile applications for various confectioneries:

Examples include: Crispy sheets, Folded snacks, Fresh coconut egg rolls, Ice cream cones, Boba cakes, Seaweed wraps, and Waffles, etc.

Selectable baking mold surfaces: Examples include checkered, striped, flat, and sunflower patterns.

Egg Roll Machine Features:

• Automated heat control system, batter dispensing, mold opening/closing, and heating elements.
• Production capacity of 500-800 pieces/hour, or approximately 100 kg/hour, with 8-12 baking heads as per requirements.
• Adjustable pressure, batter sheet thickness, temperature, batter dispensing volume, and baking time.
• High-quality non-stick Teflon-coated baking pans. Pan size and pattern can be customized.
• Suitable for producing various confections such as egg rolls, crispy baked snacks, Chinese-style egg crepes, crispy waffles, ice cream cones, etc.

Semi-Automatic Rolling Machine

Automatic Batter Dispensing Machine

Product Introduction:
The machine consists of several independent baking molds. Automatic filling and die opening are managed by a PLL control system, enabling single-person operation or autonomous function. Thickened aluminum heating plates ensure extended service life, uniform heating, and high thermal efficiency. The temperature control system is modular with an intelligent touchscreen interface. A fault isolation system allows for temporary suspension of batter injection if a specific die encounters an issue, without disrupting the production of other molds. This machine is not limited to producing egg rolls; it can also create baked goods such as pressed cakes, egg cakes, and mixed grain cakes. Upgraded models can be equipped with automatic pick-up and packaging features to reduce labor intensity and production costs. Machine molds are customizable, with options for cast aluminum, A3 plate, cast iron, embedded copper, and patterned molds to meet specific customer requirements. The machine offers robust safety performance and high operational efficiency, currently being utilized for omelet production in the domestic market.

Installation and Operation:

1. The machine must be reliably grounded before connecting to the power supply.

2. Connect the feeder to the dryer connector and signal input.

3. Connect the pneumatic air pipe to the filling machine (with cake pick-up device), maintaining an air source pressure of 3 Pa.

4. The leakage protector should be connected to the neutral line on the left side of the main power switch.

5. Each mold has a corresponding circuit breaker. In case of mold failure, it must be disconnected.

6. Upon powering on the machine, the touch screen will display the Home screen.

Safety Precautions:

1. Engage professional personnel to connect the power cord to the main power switch (three-phase, four-wire) as specified.
2. Ensure the main power supply is turned off during maintenance to guarantee the safety of personnel.
3. Exercise caution when the machine is heated; avoid contact with the molds to prevent burns.
4. Perform regular maintenance.
5. When the machine is not in operation, turn off all input power.
6. Secure tracking wheels regularly.
7. Utilize fault isolation features: When disconnecting a specific function, ensure the corresponding mold power breaker is disengaged!

Common Failures and Maintenance:

1. No batter dispensing: Check the filler air pressure for normality and ensure proper connection.
2. Machine noise: Inspect square support bearings and lubricate as necessary.

Waffles

Kebab Wraps / Tortillas for Kebab

Purple Egg Rolls

Egg Rolls

Examples of Products from the Automatic Egg Roll Making Machine
