Description

Conveyor Belt 201 Mesh

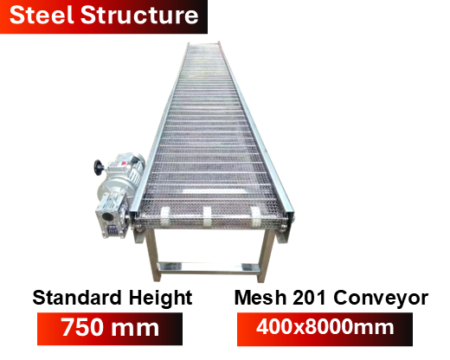

Stainless Steel 201 Mesh Conveyor Belt

Steel Structure (Fixed Height)

• Mesh type conveyor belt for material handling and transport.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates material transfer and sorting; easy to install and operate.
• Standard machine height: 75 cm (fixed).
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt constructed from interconnected wires or fibers forming a mesh. This design allows for easy passage of air or liquids. This type of belt is commonly used in applications requiring ventilation or heat dissipation, as well as for material transport in various industrial processes, particularly in baking or heating applications.

Features and Applications of Mesh Belts:

1. Excellent Ventilation: The mesh structure, with its gaps between wires, ensures efficient airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are frequently employed in processes involving baking or heating, such as food drying or material curing.
3. Diverse Materials: Mesh belts can be manufactured from various materials, including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Commonly used in the food industry (drying, baking), chemical industry, component manufacturing, and assembly lines requiring airflow.

Example Products:

Inverter Motor Speed Ratio: 30-40 meters/minute. Upgrade cost: 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min. Adjustable legs: 100 mm.
• Total belt load capacity: 3 Kg.
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min. Adjustable legs: 100 mm.
• Total belt load capacity: 3 Kg.

• Conveyor Belt PU, Stainless Steel Structure: 400x1500x800 mm
• Speed 8-13 m/min. Adjustable legs: 100 mm.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC, Aluminum Profile Structure: 300×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 20 Kg.

• Conveyor Belt PU, Aluminum Profile Structure: 500×4500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC, Aluminum Profile Structure: 300×6000 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Structure: 500×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Structure: 400×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU, Stainless Steel 304 Structure: 500×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 40 Kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC, Aluminum Profile Structure: 300×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Mesh Stainless Steel 304, Stainless Steel 304 Structure: 600×1000 mm
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

**English Specifications**

**Thai Specifications**

Product on conveyor: approximately 30 kg

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials free of oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Better resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier weight.

2. Suitable Applications

   • PVC → General cargo transport, e.g., packaging, electronics.
   • PU → Food, pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Applications demanding high hygiene or operating in high-temperature or high-humidity environments, such as food and beverage processing plants and heavy industries.
