Description

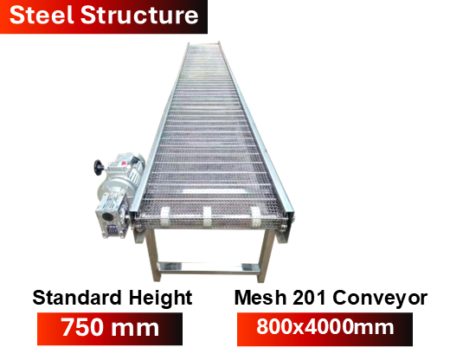

Conveyor Belt 201 Mesh

Stainless Steel Mesh Conveyor Belt

Steel Structure (Non-adjustable Height Legs)

• Mesh type conveyor belt for transporting items.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates easy material handling and transportation; simple to install and operate.
• Standard height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 40kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belts are a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern. This design allows for easy passage of air or liquids. These belts are commonly used in applications requiring ventilation or cooling, as well as for material transport across various industries, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure provides gaps between wires, enabling efficient air and heat exchange.
2. High-Temperature Resistance: Mesh belts are suitable for applications involving baking or heating, such as food drying or material curing.
3. Diverse Materials: Mesh belts can be manufactured from various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely used in the food industry (drying/baking), chemical processing, component manufacturing, and assembly lines requiring airflow.

Example Products:

Inverter Motor with Speed Ratio 30-40 m/min – Additional Cost: 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min, Adjustable Leg Height 100 mm.
• Load Capacity: 3 Kg. across the entire belt.
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min, Adjustable Leg Height 100 mm.
• Load Capacity: 3 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel Structure, 400x1500x800 mm
• Speed 8-13 m/min, Adjustable Leg Height 100 mm.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Structure, 300×1500 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load Capacity: 20 Kg. across the entire belt.

• Conveyor Belt PU with Aluminum Profile Structure, 500×4500 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Structure, 300×6000 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Structure + Stainless Steel 304 Table, 500×3000 mm
• Speed 3-5 m/min, Adjustable Legs.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Structure + Stainless Steel 304 Table, 400×3000 mm
• Speed 3-5 m/min, Adjustable Legs.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Structure, 500×1500 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load Capacity: 30 Kg. across the entire belt.

• Steel Structure Stainless 304 Conveyor Solid

• Speed 3-5 m/min, Adjustable Legs.
• Load Capacity: 40 Kg. across the entire belt.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight Capacity: 2-3 Kg.

•
• Conveyor Belt PVC with Aluminum Profile Structure, 300×1500 mm
• Speed 8-13 m/min, Adjustable Legs.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Mesh, Stainless Steel 304, Stainless Steel 304 Structure, 600×1000 mm
• Speed 3-5 m/min, Adjustable Legs.
• Load Capacity: 40 Kg. across the entire belt.

Conveyor Belt PVC Speed Specifications

**English**

**Thai**

Product on conveyor: approximately 30kg

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Moderate flexibility and chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials free of oils and fats.
     ❌ Not resistant to high temperatures; may wear faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tensile strength and longer lifespan than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier weight.

2. Suitable Applications

   • PVC → General item transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving contact with oils or fats.
   • Stainless Steel → Applications requiring high hygiene, or environments with high heat or humidity, e.g., food and beverage manufacturing, heavy industries.
