Description

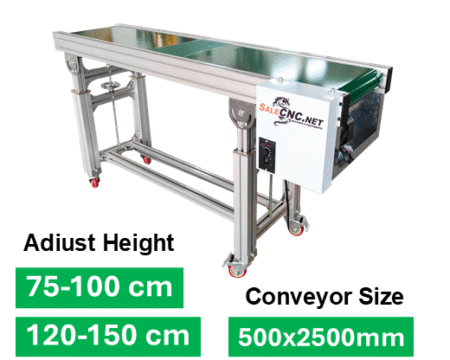

Conveyor Belt (Adjustable Height)

Conveyor Belt (BC Model) Height Adjustment Options:

• 1. 700 to 1000 mm (300mm adjustment range)
• 2. 750 to 1100 mm (350mm adjustment range)
• 3. 800 to 1150 mm (350mm adjustment range)
• 4. 900 to 1300 mm (400mm adjustment range)
• 5. 950 to 1400 mm (450mm adjustment range)
• 6. 1000 to 1500 mm (500mm adjustment range)

Select one height range.

Height Adjustment Specifics:

• BC Models with 75cm base height can be raised by 35 cm.
• BC Models with 80cm base height can be raised by 35 cm.
• BC Models with 85cm base height can be raised by 40 cm.
• BC Models with 90cm base height can be raised by 40 cm.
• BC Models with 95cm base height can be raised by 45 cm.
• BC Models with 100cm base height can be raised by 50 cm.

Select one height adjustment range.

• PVC Conveyor Belt for material handling and transfer.
• Equipped with an electric motor allowing for adjustable flow speed.
• Facilitates easy material handling and logistics; simple installation and operation.
• Standard machine height: 75 cm (fixed, non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyvinyl Chloride (PVC) Properties:

• PVC offers excellent resistance to high temperatures, tensile strength, and puncture resistance.
• PVC exhibits superior wear resistance.
• PVC provides good resistance to oils and odors.
• PVC is robust and resistant to abrasion.

Optional Product Example:

Inverter Motor with Speed Ratio Control (30-40 meters/minute) – Additional cost: 7,500 THB

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 3 kg.
• Price: 32,000 THB

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 3 kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 20 kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Steel Structure Stainless 304 Conveyor Solid Belt

• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 40 kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs
• Total belt load capacity: 30 kg.

• Conveyor Belt (Stainless Mesh) with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs
• Total belt load capacity: 40 kg.

Speed Specifications for Conveyor Belt PVC

English Specifications Summary

Thai Specifications Summary

Video Demonstration

Product Load Capacity: Approximately 30 kg.

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

• Material and Properties
  • PVC (Polyvinyl Chloride)
    ✅ Flexible and offers moderate chemical resistance.
    ✅ More economical than PU and stainless steel.
    ✅ Suitable for general applications such as packaging or material transport without oil and fat exposure.
    ❌ Less resistant to high temperatures and may wear faster than PU.
  • PU (Polyurethane)
    ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
    ✅ Smooth surface, ideal for food and pharmaceutical industries.
    ✅ Higher tear strength and longer service life than PVC.
    ❌ Higher cost than PVC.
  • Stainless Steel
    ✅ High strength, resistant to impact and wear.
    ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
    ✅ Resistant to high temperatures and chemicals.
    ❌ High cost and potentially heavier.
• Suitable Applications
  • PVC → General goods transport, e.g., packaging, electronics.
  • PU → Food and pharmaceutical industries, applications involving oil or fat contact.
  • Stainless Steel → High-hygiene applications or environments with high heat or humidity, e.g., food and beverage manufacturing, heavy industries.
