Description

Conveyor Belt PVC

Standard height (Non-adjustable)

• PVC conveyor belt for material handling and transfer.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates easy material transport and conveying; simple installation and operation.
• Standard height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 30kg.

Polyvinylchloride (PVC)

• PVC offers excellent resistance to high temperatures, tensile strength, and puncture.
• PVC exhibits good wear resistance.
• PVC provides good resistance to oils and odors.
• PVC is durable and resistant to abrasion.

[conveyor_img_link]

Product Example:

• Conveyor Belt PU 600×2500 mm
• Motor: 200W
• Speed: 16-25 m/min
• Adjustable legs with free-spinning casters

Product Example:
Inverter Motor Option Motor speed ratio 30-40 meters/minute, additional cost 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min, Adjustable legs (100 mm range)
• Load capacity: 3 Kg. across the entire belt length
• Price: 32,000 Baht

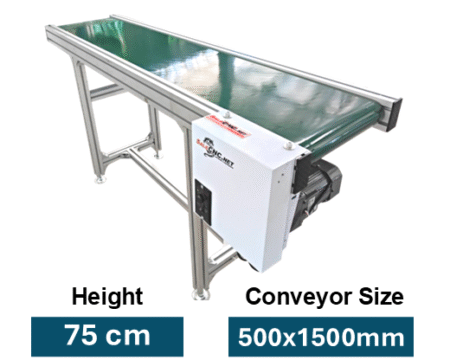

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min, Adjustable legs (100 mm range)
• Load capacity: 3 Kg. across the entire belt length

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min, Adjustable legs (100 mm range)
• Load capacity: 30 Kg. across the entire belt length

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, Adjustable legs
• Load capacity: 20 Kg. across the entire belt length

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min, Adjustable legs
• Load capacity: 30 Kg. across the entire belt length

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min, Adjustable legs
• Load capacity: 30 Kg. across the entire belt length

• Conveyor Belt PU with Stainless Steel 304 Frame and Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min, Adjustable legs
• Load capacity: 30 Kg. across the entire belt length

• Conveyor Belt PU with Stainless Steel 304 Frame and Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min, Adjustable legs
• Load capacity: 30 Kg. across the entire belt length

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min, Adjustable legs
• Load capacity: 30 Kg. across the entire belt length

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min, Adjustable legs
• Load capacity: 40 Kg. across the entire belt length

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, Adjustable legs
• Load capacity: 30 Kg. across the entire belt length

• Conveyor Mesh Belt Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min, Adjustable legs
• Load capacity: 40 Kg. across the entire belt length

Conveyor Belt PVC Speed Specifications

**Standard Motor Options**

Product on conveyor: approximately 30kg

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Material and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging industries or transport of materials without oil and grease.
     ❌ Not resistant to high temperatures; may show faster wear compared to PU.

   • PU (Polyurethane)
     ✅ Superior resistance to oils, fats, and chemicals compared to PVC.
     ✅ Smoother surface finish, ideal for food and pharmaceutical industries.
     ✅ Higher tear resistance and longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.

2. Suitable Applications

   • PVC → General cargo transport, such as packaging and electronics.
   • PU → Food and pharmaceutical industries, and applications involving contact with oils or fats.
   • Stainless Steel → Applications requiring high cleanliness standards or harsh environments with high heat or humidity, such as food and beverage processing plants, and heavy industrial sectors.
