Description

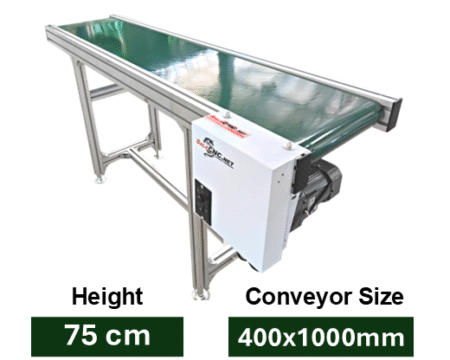

Conveyor Belt PVC

Standard Height (Non-Adjustable)

• Conveyor belt for material handling, PVC type.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates easy material transport and conveying; simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyvinylchloride (PVC)

• PVC offers good resistance to high temperatures, tensile stress, and puncture/tearing.
• PVC exhibits excellent wear resistance.
• PVC provides good resistance to oils and is odor-resistant.
• PVC is robust and resistant to abrasion.

[conveyor_img_link]

Product Example:

• Conveyor Belt PU 600×2500 mm
• Motor: 200W
• Speed: 16-25 m/min
• Adjustable leveling legs with free-rotating casters.

Product Example:

Inverter Motor Option: Motor speed ratio 30-40 meters/minute, additional cost: 7,500 THB

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min. Adjustable leveling legs: 100 mm.
• Load capacity: 3 kg across the entire belt.
• Price: 32,000 THB

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min. Adjustable leveling legs: 100 mm.
• Load capacity: 3 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min. Adjustable leveling legs: 100 mm.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable leveling legs.
• Load capacity: 20 kg across the entire belt.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min. Adjustable leveling legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min. Adjustable leveling legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min. Adjustable leveling legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min. Adjustable leveling legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min. Adjustable leveling legs.
• Load capacity: 30 kg across the entire belt.

• Steel Structure Stainless 304 Conveyor Solid Belt
• Speed: 3-5 m/min. Adjustable leveling legs.
• Load capacity: 40 kg across the entire belt.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable leveling legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt with Stainless Steel 304 Mesh and Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min. Adjustable leveling legs.
• Load capacity: 40 kg across the entire belt.

Conveyor Belt PVC Speed Specifications

England

Thai Language

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product load capacity on conveyor: approximately 30 kg.

• Standard motor is 120W. Optional motors available: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

• Materials and Properties
  • PVC (Polyvinyl Chloride)
    ✅ Flexible and offers moderate chemical resistance.
    ✅ More economical than PU and stainless steel.
    ✅ Suitable for general applications such as packaging or material transport not involving oils and greases.
    ❌ Not resistant to high temperatures and may wear faster than PU.
  • PU (Polyurethane)
    ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
    ✅ Smoother surface, ideal for food and pharmaceutical industries.
    ✅ More resistant to tearing and offers longer service life than PVC.
    ❌ Higher cost than PVC.
  • Stainless Steel
    ✅ High strength, resistant to impact and wear.
    ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
    ✅ Resistant to high temperatures and chemicals.
    ❌ High cost and potentially heavier weight.
• Recommended Applications
  • PVC → For general goods transport, e.g., packaging, electronics.
  • PU → For food and pharmaceutical industries, and applications involving contact with oils or greases.
  • Stainless Steel → For applications demanding high cleanliness or operating in high-temperature or high-humidity environments, such as food and beverage production facilities and heavy industrial applications.
