Description

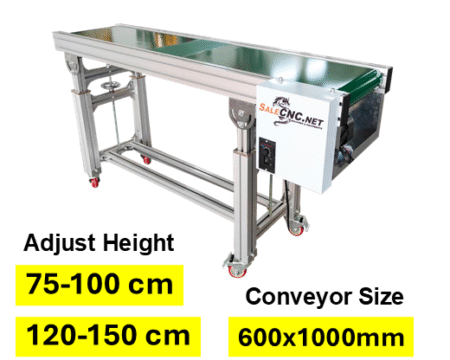

Conveyor Belt – PVC Type

(Adjustable Height)

Conveyor BC models offer selectable height adjustments:

• 1. 700 to 1000 mm (300mm adjustment range)
• 2. 750 to 1100 mm (350mm adjustment range)
• 3. 800 to 1150 mm (350mm adjustment range)
• 4. 900 to 1300 mm (400mm adjustment range)
• 5. 950 to 1400 mm (450mm adjustment range)
• 6. 1000 to 1500 mm (500mm adjustment range)

Note: Only one height range can be selected.

Specific height options and their corresponding adjustment ranges:

• B/C with base height 75cm can be raised by 35 cm
• B/C with base height 80cm can be raised by 35 cm
• B/C with base height 85cm can be raised by 40 cm
• B/C with base height 90cm can be raised by 40 cm
• B/C with base height 95cm can be raised by 45 cm
• B/C with base height 100cm can be raised by 50 cm

Note: Only one height option can be selected.

• Features a PVC type conveyor belt for material handling and transfer.
• Equipped with an electric motor allowing for adjustable belt speed.
• Facilitates easy material transport and logistics, with simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Maximum product load on conveyor: Approximately 30 kg.

Polyvinylchloride (PVC) Properties

• PVC exhibits good resistance to high temperatures, tensile strength, and resistance to cutting and tearing.
• PVC offers excellent wear resistance.
• PVC demonstrates good resistance to oils and is odor-resistant.
• PVC is robust and durable against abrasion.

Example Products:

Optional: Inverter Motor with Speed Ratio 30-40 m/min – Additional Charge: 7500 THB

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm height adjustment.
• Load Capacity: 3 kg across the entire belt.
• Price: 32,000 THB

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm height adjustment.
• Load Capacity: 3 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm height adjustment.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 20 kg across the entire belt.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame and Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame and Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Steel Structure Stainless 304 Conveyor Solid
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 40 kg across the entire belt.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight Capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg across the entire belt.

• Conveyor Belt Stainless Steel Mesh with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 40 kg across the entire belt.

Speed Specifications for Conveyor Belt PVC

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product load capacity on conveyor: Approximately 30 kg

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or material transport not involving oils and fats.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to oils, fats, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tensile strength and longer lifespan than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavy.

2. Suitable Applications

   • PVC → General material transport such as packaging and electronics.
   • PU → Food, pharmaceutical industries, and applications involving contact with oils or fats.
   • Stainless Steel → Applications requiring high cleanliness or operating in high-temperature or high-humidity environments, such as food and beverage processing plants and heavy industrial settings.
