Fiber Laser Cutting Machine Nozzle

Single-Layer and Double-Layer Nozzle Types

Nozzle Type	Application	Assist Gas	Size Range
Single Layer	For cutting Stainless Steel, Aluminum, etc.	Nitrogen	1.4 – 3.0 mm
Double Layer	For cutting Carbon Steel	Oxygen	1.5 – 3.0 mm

1. Single-Layer Nozzle: Utilized for cutting stainless steel and aluminum. This nozzle type employs nitrogen as the assist gas and offers efficient cutting performance within a size range of 1.4-3.0 mm.

2. Double-Layer Nozzle: Primarily used for cutting carbon steel, this nozzle type utilizes oxygen as the assist gas. The Double-Layer nozzle, available in sizes from 1.5-3.0 mm, ensures effective cutting operations.

Laser Nozzle Sizing

nozzle laser fiber วัด size

✅ Nozzle Fiber Laser – Regular Section M11

m11 s

M11 Single
Single M11 1.0mm Single M11 1.2mm Single M11 1.5mm Single M11 2.0mm
Single M11 2.5mm Single M11 3.0mm Single M11 3.5mm Single M11 4.0mm

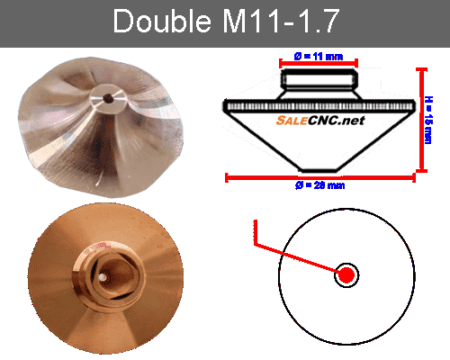

M11 Double
Double M11 1.0mm Double M11 1.2mm Double M11 1.5mm Double M11 2.0mm
Double M11 2.5mm Double M11 3.0mm Double M11 3.5mm Double M11 4.0mm

✅ Nozzle Fiber Laser – Regular Section M12

m12 s

M12 Single
Single M12 1.0mm Single M12 1.2mm Single M12 1.5mm Single M12 2.0mm
Single M12 2.5mm Single M12 3.0mm Single M12 3.5mm Single M12 4.0mm

M12 Double
Double M12 1.0mm Double M12 1.2mm Double M12 1.5mm Double M12 2.0mm
Double M12 2.5mm Double M12 3.0mm Double M12 3.5mm Double M12 4.0mm

✅ Nozzle Fiber Laser – Regular Section M14

m14 s

M14 Single
Single M14 1.0mm Single M14 1.2mm Single M14 1.5mm Single M14 2.0mm
Single M14 2.5mm Single M14 3.0mm Single M14 3.5mm Single M14 4.0mm

M14 Double
Double M14 1.0mm Double M14 1.2mm Double M14 1.5mm Double M14 2.0mm
Double M14 2.5mm Double M14 3.0mm Double M14 3.5mm Double M14 4.0mm

Inside Diameter

Sample Images of Various Laser Nozzle Sizes

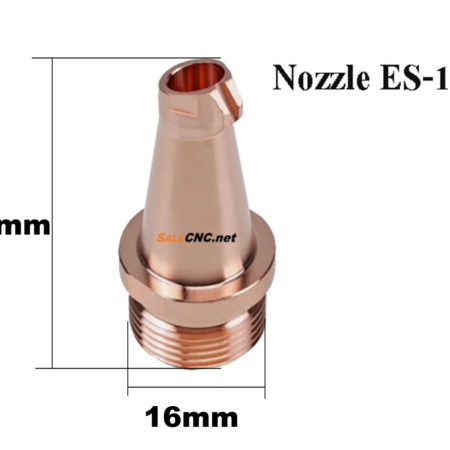

Laser nozzle, Outsider Diameter 10.7-32mm
