Wireless MPG Handwheel Pendant for Mach3 Controller
CONFIGURATION:
User configurable panel buttons.
PACKING INFORMATION

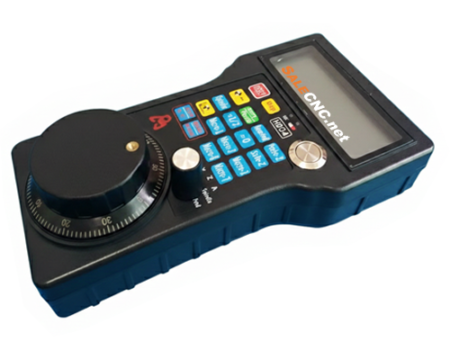

Wireless MPG Handwheel (Model WHB04) designed for CNC machine control via the Mach3 software. Key features include:
General Information and Operation
-
Product Name: Wireless MPG Handwheel (Wireless Control Unit)
-
Connectivity: Utilizes a wireless system, enabling the operator to move freely around the machine for control, eliminating the need to remain stationary at the computer.
-
Display Screen: Features an LCD screen for monitoring axis coordinates (X, Y, Z, A) and machine operational status.
Dimensions and Specifications (Refer to Images)
-
Unit Dimensions: Length 185 mm x Width 103 mm x Thickness 31 mm
-
Weight: Approximately 0.45 kg
-

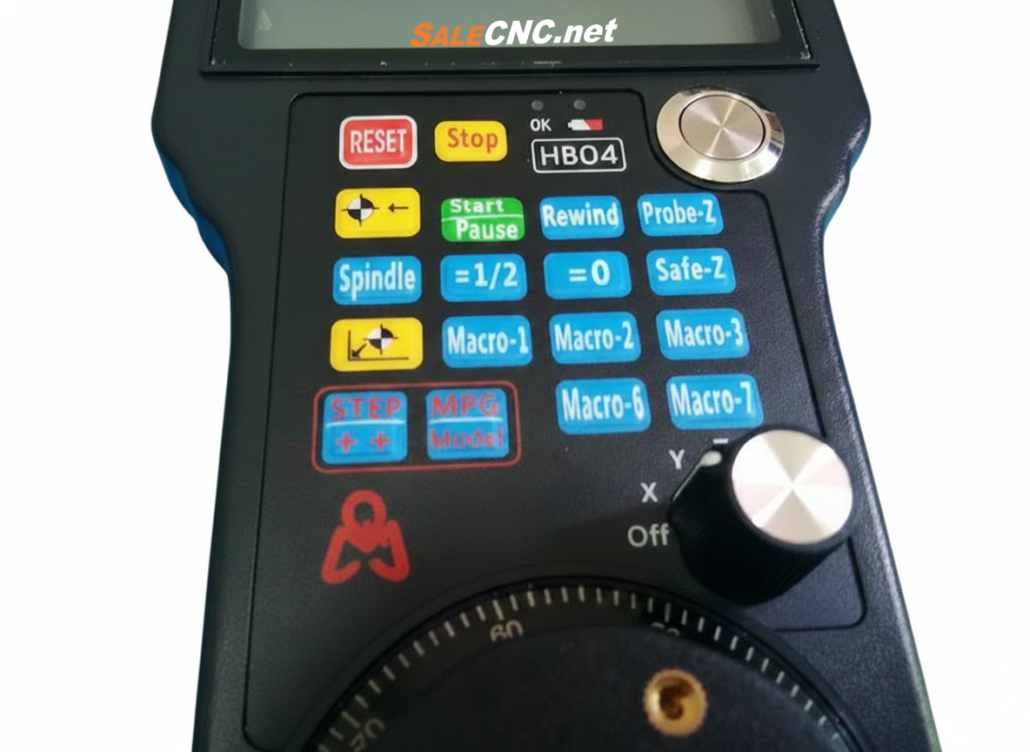

Control Buttons: Includes Reset, Stop, Start/Pause buttons, and Macro buttons (1-7) for custom command shortcuts.
-
MPG Wheel: Used for precise incremental movement of machine axes (Manual Pulse Generator).
Key Features
-
Mobility and Precision: Facilitates convenient and accurate workpiece zeroing (Set Zero) by allowing the operator to view the cutting tool closely while adjusting values.
-
Safety Feature: Equipped with an integrated Stop button for immediate emergency machine shutdown.
