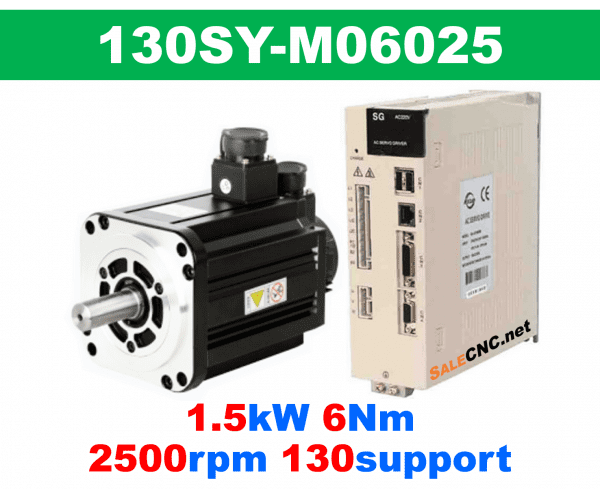

This offering features a NEW Servo Motor and Servo Drive complete set, including a 4.0-meter cable.
Model: 130SY-M06025-SD30MT
Specifications:
- Power: 1.5 KW
- Torque: 6.0 Nm
- Speed: 2500 rpm
Download 3D Files (.stp)
| Support Size | Download 3D (.stp) |
|---|---|
| 60SY | click here |
| 80SY | click here |
| 90SY | click here |
| 110SY | click here |
| 130SY | click here |
| 180SY | click here |
Installation Dimensions (Unit: mm)
Specifications Sheet
Winding Connection Table
Brake Wiring Diagram
Encoder Wiring Table
This servo system is compatible with Mach3 program controllers.
Servo Drive Diagram:
Internal Components of Servo Drive and Servo Motor:
Tamagawa Japanese Encoder
Servo Motor Drawing:
Other servo system specifications:
NEW Servo Motor and Servo Drive Complete Set with Cable 4.0m!!
Model: 110SY-M04030-SD30MT, 1.2KW 4.0Nm 3000rpm
This servo system can work with Mach3 program controller. (SG)
Servo Drive Diagram:
