Description

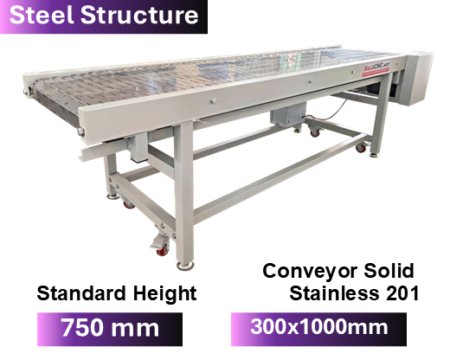

Stainless 201 Conveyor

Steel Structure (Non-adjustable height legs)

• Conveyor for material handling.
• Electric motor driven with adjustable speed control.
• Facilitates material transport and sorting; easy installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt composed of wires or fibers interconnected in a mesh pattern, allowing for easy passage of air or liquids. This type of belt is commonly used in applications requiring ventilation or cooling, as well as for material transport in various industries, particularly in baking or heating processes.

Features and Applications of Mesh Belts:

1. Excellent Ventilation: The mesh structure provides gaps between wires, facilitating efficient airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are often utilized in processes involving baking or heating, such as food drying or material curing.
3. Various Materials: Mesh belts can be manufactured from diverse materials including stainless steel, galvanized steel, or corrosion-resistant alloys.
4. Industrial Applications: Commonly found in the food industry (drying, baking), chemical industry, component manufacturing, and assembly lines requiring air circulation.

Sample Products:

Inverter Motor Motor Speed Ratio 30-40 m/min. Additional Cost: 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min. Adjustable leg height 100 mm.
• Total belt load capacity: 3 kg.
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min. Adjustable leg height 100 mm.
• Total belt load capacity: 3 kg.

• Conveyor Belt PU, Stainless Steel Frame 400x1500x800 mm
• Speed 8-13 m/min. Adjustable leg height 100 mm.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC, Aluminum Profile Frame 300×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 20 kg.

• Conveyor Belt PU, Aluminum Profile Frame 500×4500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC, Aluminum Profile Frame 300×6000 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame 500×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame 400×3000 mm + Stainless Steel 304 Table
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame 500×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt Stainless Steel 304, Steel Frame
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight: 2-3 kg.

• Conveyor Belt PVC, Aluminum Profile Frame 300×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Stainless Steel Mesh 304, Stainless Steel 304 Frame 600×1000 mm
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 40 kg.

• Conveyor Stainless Steel 304, Steel Structure
• Speed 3-5 m/min. Height 750 mm.
• Total belt load capacity: 40 kg.

Conveyor Belt PVC Speed Specifications

**English**

Product load capacity on conveyor: approximately 30 kg.

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials without oil and grease.
     ❌ Not resistant to high temperatures and may wear out faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to oil, grease, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food, pharmaceutical industries, and applications involving oil or grease.
   • Stainless Steel → Applications requiring high hygiene standards or harsh environments with high heat or humidity, e.g., food and beverage processing plants, heavy industry.
