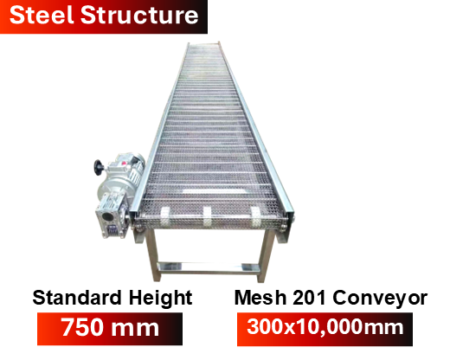

Conveyor Belt 201 Mesh

Steel Structure (Non-adjustable Height Legs)

• Mesh type conveyor belt for material handling and transport.
• Equipped with an electric motor allowing for adjustable belt speed.
• Facilitates easy material handling and conveying, with simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belts are a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern. This design allows for easy passage of air or liquids. These belts are commonly utilized in applications requiring ventilation or heat dissipation, as well as for material transport across various industries, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure features gaps between wires, promoting efficient airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are often employed in baking or heating processes, such as drying food products or materials.
3. Diverse Material Options: Mesh belts can be manufactured from various materials, including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Widely used in the food industry (drying, baking), chemical processing, component manufacturing, and assembly lines requiring airflow.

Example Products:
Inverter Motor with Motor Speed Ratio 30-40 meters/minute – Additional Charge: 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 3 kg.
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 3 kg.

• Conveyor Belt PU with Stainless Steel Frame; Dimensions: 400x1500x800 mm
• Speed 8-13 m/min; Adjustable Legs: 100 mm.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame; Dimensions: 300×1500 mm
• Speed 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 20 kg.

• Conveyor Belt PU with Aluminum Profile Frame; Dimensions: 500×4500 mm
• Speed 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame; Dimensions: 300×6000 mm
• Speed 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table; Dimensions: 500×3000 mm
• Speed 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table; Dimensions: 400×3000 mm
• Speed 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame; Dimensions: 500×1500 mm
• Speed 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Steel Structure Stainless 304 Conveyor Solid Belt

• Speed 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame; Dimensions: 300×1500 mm
• Speed 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt Stainless Steel Mesh 304 with Stainless Steel 304 Frame; Dimensions: 600×1000 mm
• Speed 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 kg.

Conveyor Belt PVC Speed Specifications

England

Product on conveyor about 30kg

• Standard motor: 120W. Options available: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties
   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications, such as packaging industries or transporting materials free of oil and grease.
     ❌ Not suitable for high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to oils, fats, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ More resistant to tearing and offers a longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage processing.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier.
2. Suitable Applications
   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene standards or environments with high heat or humidity, such as food and beverage manufacturing plants, and heavy industries.
