Description

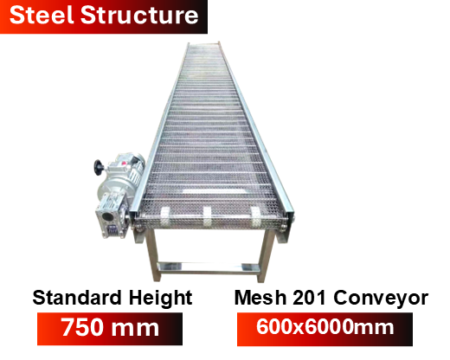

Conveyor Belt 201 Mesh

Mesh Type Stainless Steel 201 Conveyor Belt

Steel Structure (Non-adjustable height legs)

• Mesh type conveyor belt for material handling and transportation.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates easy material transport and conveyance; simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product on conveyor capacity: approximately 40kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern, allowing for easy passage of air or liquids. This type of belt is commonly employed in applications requiring ventilation or heat dissipation, as well as for material transport across various industries, particularly in drying or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh design creates gaps between wires, ensuring efficient air circulation and heat dissipation.
2. High-Temperature Resistance: Mesh belts are suitable for high-temperature applications such as food drying and material baking.
3. Diverse Materials: Mesh belts can be manufactured from various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Commonly used in the food industry (drying, baking), chemical industry, component manufacturing, and assembly lines requiring air circulation.

Sample Products:

Motor with Inverter Motor Speed Ratio 30-40 meters/minute. Add 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min. Adjustable legs (100 mm height adjustment).
• Total belt load capacity: 3 Kg.
• Price: 32,000 Baht.

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min. Adjustable legs (100 mm height adjustment).
• Total belt load capacity: 3 Kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed 8-13 m/min. Adjustable legs (100 mm height adjustment).
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 20 Kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 500×3000 mm
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 400×3000 mm
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 40 Kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min.
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 Kg.

• Conveyor Mesh Belt Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed 3-5 m/min. Adjustable legs.
• Total belt load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

**England**

**Thai**

Product on conveyor capacity: approximately 30kg

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications such as packaging and transporting materials without oil or grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to oil, grease, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer lifespan than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier weight.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene, or environments with high heat or humidity, e.g., food and beverage processing plants, heavy industries.
