Description

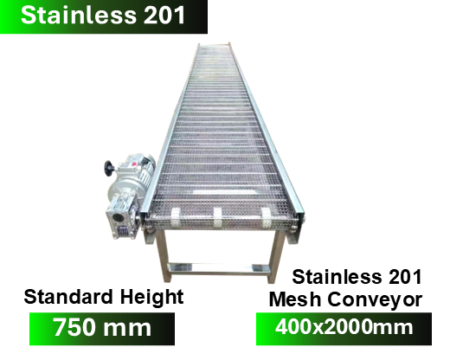

Conveyor Belt 201 Mesh

Stainless Steel 201 Frame (Non-Adjustable Height)

• Mesh type conveyor for transferring items.
• Electric motor driven with adjustable flow speed.
• Facilitates material handling and conveying; easy to install and operate.
• Standard machine height: 75 cm (non-adjustable).
• Product on conveyor capacity: approximately 40 kg.
• Temperature resistance: -50 to +200 degrees Celsius.

Mesh Belts are a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern. This design allows for easy passage of air or liquids. These belts are commonly used in applications requiring ventilation or cooling, as well as for material transport in various industries, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure provides gaps between wires, ensuring efficient airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are frequently employed in heating processes such as food drying or material baking.
3. Diverse Material Options: Available in materials like stainless steel, coated steel, or corrosion-resistant alloys.
4. Industrial Applications: Used across food processing (drying, baking), chemical industries, component manufacturing, and assembly lines requiring air circulation.

Product Examples:
Inverter Motor with Motor Speed Ratio 30-40 m/min, add 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed 40 m/min, Adjustable Feet 100 mm.
• Load Capacity: 3 Kg. (total belt)
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed 40 m/min, Adjustable Feet 100 mm.
• Load Capacity: 3 Kg. (total belt)

• Conveyor Belt PU with Stainless Steel Frame, 400x1500x800 mm
• Speed 8-13 m/min, Adjustable Feet 100 mm.
• Load Capacity: 30 Kg. (total belt)

• Conveyor Belt PVC with Aluminum Profile Frame, 300×1500 mm
• Speed 8-13 m/min, Adjustable Feet
• Load Capacity: 20 Kg. (total belt)

• Conveyor Belt PU with Aluminum Profile Frame, 500×4500 mm
• Speed 8-13 m/min, Adjustable Feet
• Load Capacity: 30 Kg. (total belt)

• Conveyor Belt PVC with Aluminum Profile Frame, 300×6000 mm
• Speed 8-13 m/min, Adjustable Feet
• Load Capacity: 30 Kg. (total belt)

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table, 500×3000 mm
• Speed 3-5 m/min, Adjustable Feet
• Load Capacity: 30 Kg. (total belt)

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table, 400×3000 mm
• Speed 3-5 m/min, Adjustable Feet
• Load Capacity: 30 Kg. (total belt)

• Conveyor Belt PU with Stainless Steel 304 Frame, 500×1500 mm
• Speed 8-13 m/min, Adjustable Feet
• Load Capacity: 30 Kg. (total belt)

• Steel Structure Stainless 304 Conveyor Solid

• Speed 3-5 m/min, Adjustable Feet
• Load Capacity: 40 Kg. (total belt)

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame, 300×1500 mm
• Speed 8-13 m/min, Adjustable Feet
• Load Capacity: 30 Kg. (total belt)

• Conveyor Mesh Belt Stainless Steel 304 with Stainless Steel 304 Frame, 600×1000 mm
• Speed 3-5 m/min, Adjustable Feet
• Load Capacity: 40 Kg. (total belt)

Conveyor Belt PVC Speed Specifications


**England**



**Thai**

Product on conveyor capacity: approximately 30 kg.

• Standard motor: 120W. Options available: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and Stainless Steel.
     ✅ Suitable for general applications such as packaging or transporting materials without oil and grease.
     ❌ Not resistant to high temperatures and may wear out faster than PU.
   • PU (Polyurethane)
     ✅ Better resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear resistance and longer lifespan than PVC.
     ❌ More expensive than PVC.
   • Stainless Steel
     ✅ Strong, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.

2. Suitable Applications

   • PVC → General goods transportation, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene or in environments with high heat or humidity, such as food and beverage plants, and heavy industries.
