Description

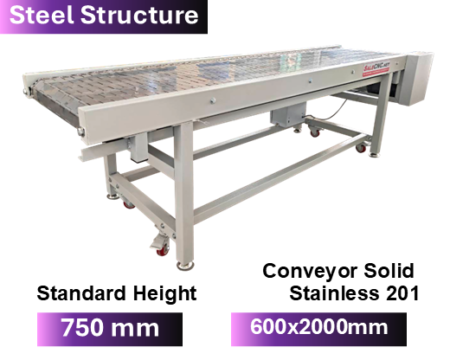

Stainless 201 Conveyor

Conveyor Belt – Stainless 201 Flat Panel Type

Steel Structure (Non-Adjustable Height Legs)

• Material handling conveyor, mesh belt type.
• Equipped with an electric motor, speed is adjustable.
• Facilitates material transport and organization; easy to install and operate.
• Standard machine height: 75 cm (non-adjustable).
• Product on conveyor: approximately 40 kg.
• Temperature resistant: -50 to +200 degrees Celsius.

Mesh Belt is a type of conveyor belt composed of wires or fibers interconnected in a mesh pattern, allowing for easy airflow or liquid passage. This type of belt is commonly used in applications requiring ventilation or cooling, as well as for material transport in various industries, particularly in baking or heating processes.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure provides gaps between wires, ensuring effective airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are suitable for high-temperature applications such as food baking or material drying.
3. Diverse Material Options: Mesh belts can be manufactured from various materials including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Applications: Frequently employed in the food industry (drying or baking), chemical industry, component manufacturing, and assembly lines requiring air circulation.

Product examples:

Inverter Motor Motor Speed Ratio: 30-40 meters/minute. Additional Cost: 7500 THB

• Conveyor Belt: PVC, 500x1000x750 mm
• Speed: 40 m/min. Adjustable leg height: 100 mm.
• Total belt load capacity: 3 kg.
• Price: 32,000 THB.

• Conveyor Belt: PVC, 500x1500x750 mm
• Speed: 40 m/min. Adjustable leg height: 100 mm.
• Total belt load capacity: 3 kg.

• Conveyor Belt: PU, Stainless Steel Frame, 400x1500x800 mm
• Speed: 8-13 m/min. Adjustable leg height: 100 mm.
• Total belt load capacity: 30 kg.

• Conveyor Belt: PVC, Aluminum Profile Frame, 300×1500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Total belt load capacity: 20 kg.

• Conveyor Belt: PU, Aluminum Profile Frame, 500×4500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt: PVC, Aluminum Profile Frame, 300×6000 mm
• Speed: 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt: PU, Stainless Steel 304 Frame + Stainless Steel 304 Table, 500×3000 mm
• Speed: 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt: PU, Stainless Steel 304 Frame + Stainless Steel 304 Table, 400×3000 mm
• Speed: 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt: PU, Stainless Steel 304 Frame, 500×1500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt: Stainless Steel 304, Steel Frame
• Speed: 3-5 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt: PVC, 300x1500x750 mm
• Conveyor Belt: PVC, 300x1000x750 mm
• Conveyor Belt: PVC, 300x1200x300 mm
• Speed: 8-13 m/min.
• Weight capacity: 2-3 kg.

• Conveyor Belt: PVC, Aluminum Profile Frame, 300×1500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor: Stainless Steel 304 Mesh Belt, Stainless Steel 304 Frame, 600×1000 mm
• Speed: 3-5 m/min. Adjustable legs.
• Total belt load capacity: 40 kg.

• Conveyor: Stainless Steel 304, Steel Structure
• Speed: 3-5 m/min. Height: 750 mm.
• Total belt load capacity: 40 kg.

Conveyor Belt PVC Speed Specifications

**England**

**Thai Language**

Product on conveyor: approximately 30 kg.

• Standard motor: 120W. Options: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials without oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to oils, fats, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ More resistant to tearing and offers a longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving oil or grease.
   • Stainless Steel → High-hygiene applications, environments with high heat or humidity, e.g., food processing plants, beverage production, heavy industry.
