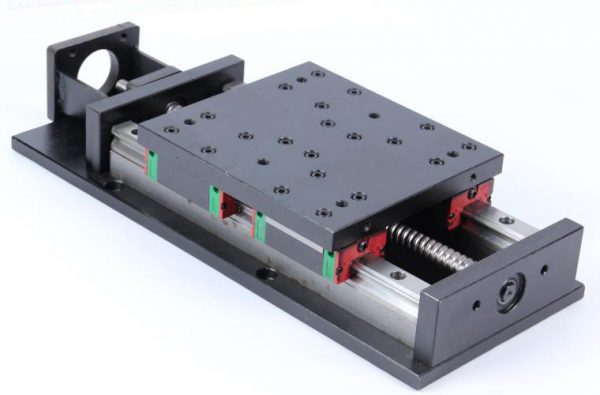

Square Linear Set HG20 Pallet Platform
This document details the specifications for the HG20 Pallet Platform, a linear actuation system designed for precision positioning.
Parameters
- Sliding table material: 45 # steel
- Slider panel: 160 mm wide × 180 mm long. M8 mounting holes (104 mm × 140 mm centers)
- Sliding floor: 160 mm wide × (effective stroke + 290 mm) long. Floor thickness: 15 mm
- Sliding table height: 79 mm
- Actuator: Ball screw diameter 16 mm, Lead 10 mm. Rail: HGH20CA (Micro PRELOAD Precision Class)
- Positioning accuracy: 0.02 mm
- Load Capacity: Horizontal: 180 kg / Vertical: 90 kg
- Accessories (Choose One): 57 or 86 stepper motor bracket, 60 or 80 servo motor bracket, or hand wheel.
