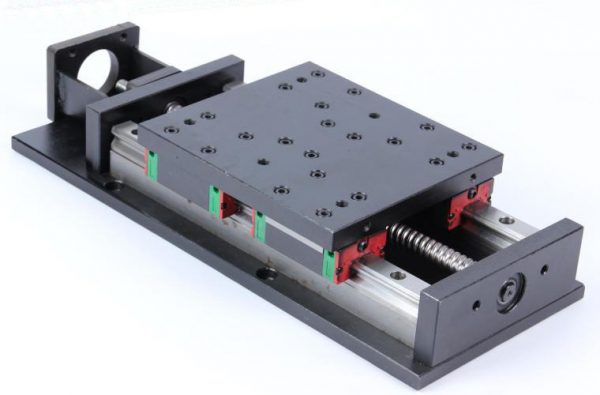

Specifications for the HG20 Pallet Platform with a 0.20-meter stroke:
Parameters
- Sliding Table Material: 45# Steel
- Slider Panel Dimensions: 160 mm (width) x 180 mm (length). Features M8 mounting holes spaced at 104 mm x 140 mm.
- Sliding Floor Dimensions: 160 mm (width) x (Effective Stroke + 290 mm). Floor thickness is 15 mm.
- Sliding Table Height: 79 mm
- Actuator Components:
- Ball Screw Diameter: 16 mm, Lead: 10 mm (nominal 10 mm per revolution, subject to change).
- Linear Rail: HGH20CA (Micro preload precision class).
- Positioning Accuracy: 0.02 mm
- Load Capacity: Horizontal: 180 kg / Vertical: 90 kg
- Accessory Options (Select One):
- 57 or 86 stepper motor bracket
- 60 or 80 servo motor bracket
- Hand Wheel
