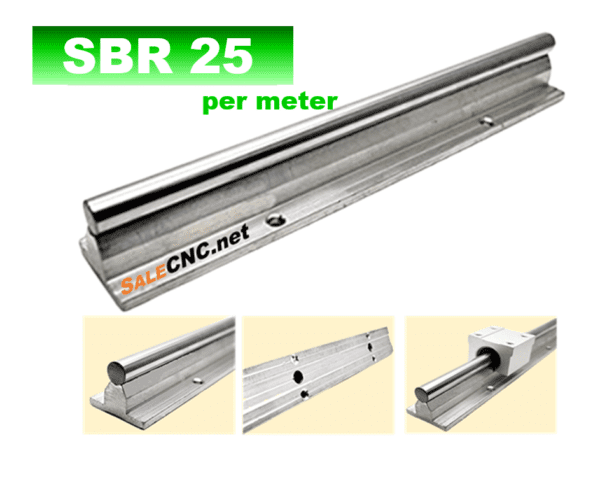

Linear Rail (Price Per Meter)
Linear Rail Model SBR Per Meter
Specification: Linear Rail (SBR) Specifications
Linear Rail SBR10 Model Sizes: 10 / 12 / 16 / 20 / 25 / 30 / 35 / 40 / 50 mm
Features: Linear Rail (SBR) Features
- Linear bearings provide a low-cost linear motion system for unlimited travel in conjunction with the cylinder axis. Due to point contact between the ball and the straight axis, the load capacity is limited.
- The ball spins with minimal friction, enabling high-precision and smooth motion.
- Flange linear bearings can be categorized into: round flange type, oval flange type, guide wheel flange type, guide oval flange type, and extended round flange type.
- This is a sliding unit featuring an aluminum casing, shafts, and an aluminum rail to prevent deflection.
- This complete sliding unit system can be easily secured by tightening bolts with high accuracy.
- The support rail unit offers maximum rigidity and stiffness to the shaft throughout the entire stroke, ensuring optimal unit performance.
Linear Rail SBR Assembled with Sliding Block
Rear View of Linear Rail SBR
