Connection Method Details:

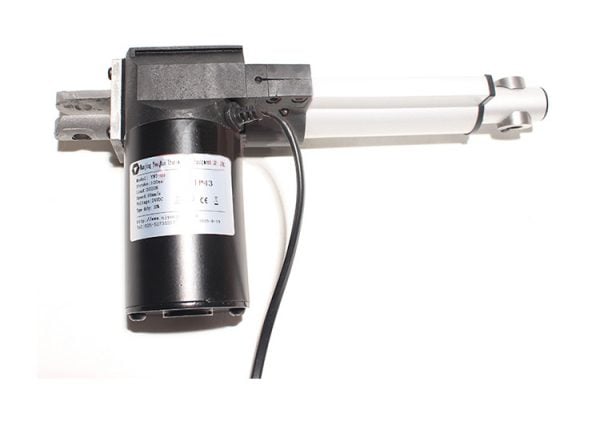

- The linear actuator motor plug is designed for integration with our proprietary controller. If an alternative controller is used, the connector can be detached. The motor features two wires (positive and negative) for telescopic extension and retraction control. By inverting the polarity of these wires, directional control can be achieved. Alternatively, a simple DPDT switch can be implemented to control extension and retraction.
- Minimum Mounting Dimensions (measured between mounting holes when the push rod is fully retracted): L = S + 175mm, where ‘S’ is the stroke length.
- Maximum Installation Dimensions (measured between mounting holes when the push rod is fully extended): 2 * S + 175mm, where ‘S’ is the stroke length.
- The linear actuator motor utilizes a 2-wire system (positive and negative) for controlling the telescopic movement (extension/retraction).
- Operating Principle: Higher speed is correlated with lower thrust, while lower speed corresponds to greater thrust.
