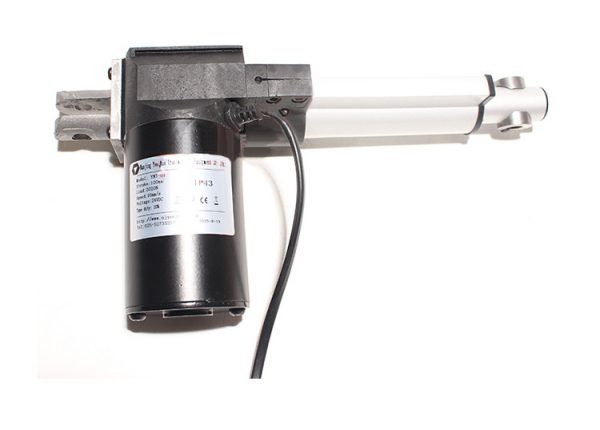

Linear Actuator Motor LX600 – 300mm Stroke
About connection method:
- The linear actuator motor plug is equipped with our controller. If used without a compatible controller, disconnect the connector. The motor has two wires for positive and negative polarity. Reversing the polarity will reverse the direction of extension and retraction. A polarity-reversing switch can be added for independent telescopic control.
- Minimum mounting dimensions (push rod fully retracted, spacing between mounting holes): L = S + 175mm, where S is the stroke length.
- Maximum installation dimensions (push rod fully extended, spacing between mounting holes): 2 * S + 175mm, where S is the stroke length.
- The linear actuator motor features 2 wires (positive and negative) for controlling extension and retraction (lifting).
- Higher speed correlates with lower thrust; conversely, lower speed correlates with greater thrust.
