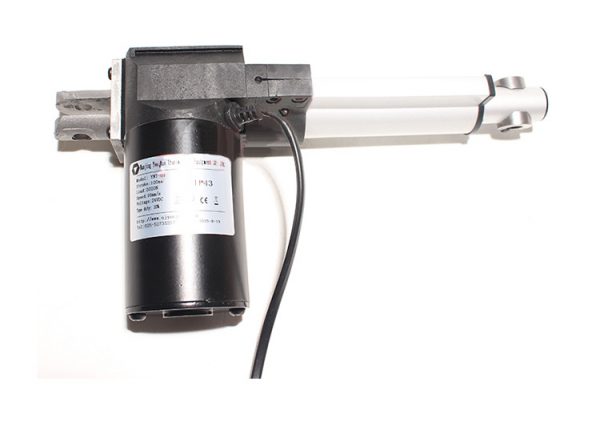

Offering the Linear Actuator Motor LX600 with a 200mm stroke length.
About connection method:
- The linear actuator motor’s plug is designed for integration with our proprietary controller. If a compatible controller is not used, the connector can be detached. The two exposed wires represent positive and negative terminals for control. Reversing the polarity will reverse the direction of extension and retraction. Incorporating a polarity-reversing switch will enable control for telescopic movement.
- Minimum Installation Dimensions (push rod fully retracted, distance between mounting holes): L = S + 175mm, where S is the stroke length.
- Maximum Installation Dimensions (push rod fully extended, distance between mounting holes): 2 * S + 175mm, where S is the stroke length.
- The linear actuator motor features 2 wires (positive and negative) for controlling extension and retraction (lifting/lowering) operations.
- Note: Higher speed is inversely proportional to thrust; conversely, lower speed corresponds to greater thrust.
