About connection method:

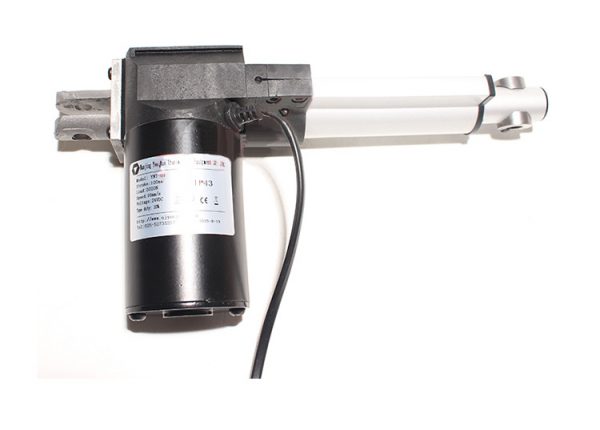

- The actuator motor is supplied with a controller connector. If a supporting controller is not used, the connector can be cut off. The exposed wires consist of two lines representing positive and negative. Reversing these connections will control forward and reverse telescopic movement. A polarity reversal switch can be added for independent control of extension and retraction.
- Minimum mounting dimensions (fully retracted push rod, distance between mounting holes): L = S + 175mm, where S is the stroke length.
- Maximum mounting dimensions (fully extended push rod, distance between mounting holes): 2 * S + 175mm, where S is the stroke length.
- The actuator motor features 2 lines (positive and negative) for controlling telescopic extension and retraction (lifting).
- Higher speed is achieved with lower thrust, and conversely, slower speed is achieved with greater thrust.
