Description

Chiller Water Cooling

JCW-3000 Chiller

Chiller Water Cooling System

Industrial Cooling System for Factories

Precise Temperature Control Industrial Cooling System

• Thailand is located in the tropical zone, experiencing high temperatures year-round. In industrial settings, operating machinery, electronic devices, and other equipment at elevated temperatures can lead to overheating, equipment damage, reduced efficiency, and potentially fire hazards. Similar to how high body temperature indicates illness, excessive heat in machinery impairs performance. Therefore, maintaining machinery and mitigating high-temperature issues is crucial, with a Chiller serving as an essential solution.
• Thailand is located in the tropical zone. It is hot all year round. In machine operation Electronic device and other industrial equipment when there is an increase in temperature causing the inside of the machine to overheat resulting in malfunctioning equipment not working efficiently and find more and more heat equations there may be a fire. Machine heat Is like the heat of a person’s body, when the body temperature increases beyond normal we will get sick and unable to do things at their full potential Therefore, we consider the maintenance of the machine. And can solve problems with high temperature machines with Chiller to help.

• Chillers are refrigeration units designed for cooling and temperature reduction, available in various sizes. Their primary function is to produce cooling, lower temperatures, and dissipate heat, utilizing water as the medium for heat exchange. Chillers are widely employed in industrial facilities to manage the operating temperatures of machinery, prolong equipment lifespan, and maintain optimal performance efficiency.
• Chiller is a refrigeration. Water cooler There are both large and small. It is the main function of cold production reduce the temperature and cooling.

• Water is used as the primary medium for heat exchange and dissipation from the cooling unit.
• Chillers are currently utilized in industrial plants for dissipating machine heat, ensuring equipment longevity, and preserving operational efficiency.
• Examples include closed-loop systems, hydraulic injection molding machines, and CNC machinery.
• For example : Closed system pond, Hydraulic injection molding machine, CNC Engraving Cutting CO2, CNC Laser Engraving UV, CNC Router Milling, CNC Fiber Laser and other.

Chiller Model JL-3000 for Sale

Designed for cooling CNC machines and fiber lasers, ensuring optimal operation by preventing overheating during use.

FEATURES

1. Refrigeration Capacity : 50W/°C
2. Compact, energy-saving thermolysis water cooler.
3. Features complete water flow alarm functions.
4. Widely used for CNC Lasers, CNC Fiber Lasers, and CNC CO2 Lasers.
5. Standard operating temperature: 25-32 degrees Celsius.

LIMITATION

• This model does not feature a compressor and cannot actively control the temperature.
• The unit will adjust the temperature to match the ambient climate conditions.

Machine Dimensions

✔ Front View

✔ Rear View ✔ Inlet and Outlet Ports ✔ Ventilation Fan ✔ Drain Port

Machine Dimensions

Machine Components

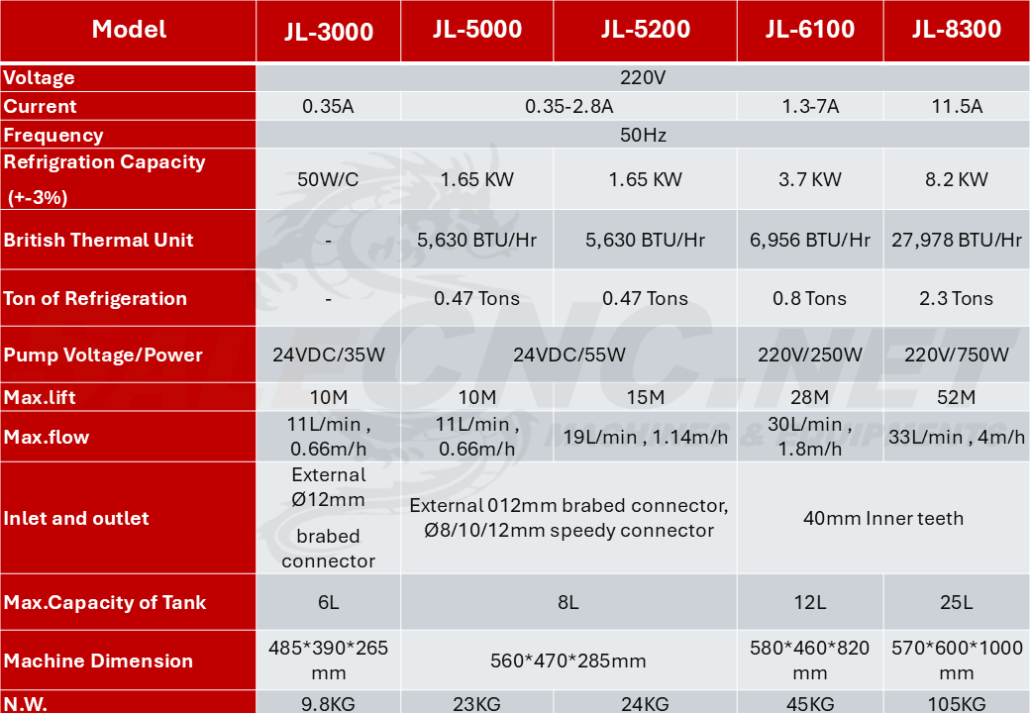

Technical Parameters

Limitations of Chiller Models JL/CW-3000

Compressor

• JCW/CW-3000: None
• Models JCW/CW-5000 and above: Equipped

Temperature Control

• JCW/CW-3000: Temperature control is not available.
• Models JCW/CW-5000 and above: Temperature control is available.

Temperature Reduction Mechanism

• JCW/CW-3000: The unit passively adjusts the temperature to ambient levels. For instance, if the ambient temperature is 32°C, the unit will operate to reach this temperature.
• Models JCW/CW-5000 and above: Active temperature adjustment is possible. The unit operates only when the temperature drops to the pre-set value.

Compressor

• JCW/CW-3000: Don’t have
• From model JCW/CW-5000 up: Have

Temperature Control

• JCW/CW-3000: Can’t control the temperature.
• From model JCW/CW-5000 and above: Temperature control

Reduction of Temperature

• JCW/CW-3000: The unit will adjust the temperature to the normal temperature. For example, the normal temperature is 32 degrees. The machine will adjust the temperature down to 32 degrees.
• From model JCW/CW-5000 up: can adjust the temperature The machine will work only when the temperature drops to the set temperature.

Download User Manual for Chiller JCW-3000  Click Here

Comparison: Chiller Models JCW3000 vs. JCW5000/5200/6180

Comparison of All Water Chiller Models

Chiller Water Cooling Model JL Series

Interaction Between CO2 Laser Tube and Chiller System

Optional Accessory: Heat Exchanger

A Heat Exchanger connected to the Chiller, immersed in water, further reduces water temperature.

Price: 3,000 THB Only!!

Heat Exchanger Installation with Chiller Unit

Heat Exchanger: An Optional Accessory for Chillers to Further Reduce Water Temperature | SALECNC.net

Chiller Water Cooling VS Cooling Tower

Cooling Towers are primarily used in industries such as Plastic Injection Molding. However, they have significant drawbacks: large size, open-system operation making them difficult to maintain, and susceptibility to dust and debris ingress, which compromises performance and shortens lifespan.

Consequently, industrial facilities are increasingly adopting Chiller Water Cooling Systems. These units are compact, space-saving, operate as closed systems to effectively prevent contamination from dust and debris, and offer extended operational longevity.
