Description

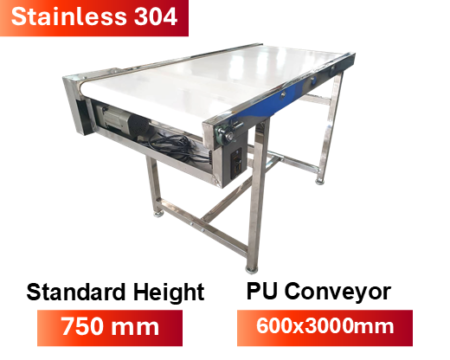

Conveyor Belt PU

Construction: Stainless Steel 304 (Non-adjustable height legs)

• This is a PU type conveyor belt for transferring items.
• Equipped with an electric motor, capable of variable speed adjustment.
• Facilitates easy material transport and item sorting; simple to install and operate.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyurethane (PU) Belt is favored across numerous industries due to its exceptional properties:

1. High Durability: Polyurethane exhibits superior strength and wear resistance, making it ideal for demanding applications involving heavy material or component transport.
2. Chemical Resistance: PU offers good resistance to various chemicals, including certain acids and alkalis, suitable for environments with chemical exposure or related industrial processes.
3. High Temperature Tolerance: PU belts can withstand higher temperatures compared to many other materials, performing effectively in elevated temperature conditions.
4. Flexibility and Customization: High flexibility allows PU to be tailored into specific shapes and sizes for specialized applications. It can also be engineered for enhanced grip or other specific surface characteristics.
5. Abrasion Resistance: PU demonstrates excellent resistance to abrasion, beneficial for applications involving contact with rough materials or frequent friction.
6. Lightweight Design: Compared to other belt types, PU belts are generally lighter, simplifying installation and reducing operational resistance.
7. Tensile Strength: PU belts possess robust tensile and compressive strength, ensuring reliable performance in conveying and material transport systems.
8. Quiet Operation: PU belt operation is typically quieter than other belt types, contributing to reduced noise levels in factories and production environments.

These attributes make PU belts highly suitable for applications in industries such as food processing, automotive manufacturing, and general factory material handling.

Product Examples:

Motor with inverter: Motor speed ratio 30-40 meters/minute (Additional cost: 7500 Baht)

• Conveyor Belt PVC, Dimensions: 500x1000x750 mm
• Speed: 40 m/min, Adjustable pedestal legs: 100 mm.
• Load capacity: 3 kg across the entire belt.
• Price: 32,000 Baht

• Conveyor Belt PVC, Dimensions: 500x1500x750 mm
• Speed: 40 m/min, Adjustable pedestal legs: 100 mm.
• Load capacity: 3 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel Frame, Dimensions: 400x1500x800 mm
• Speed: 8-13 m/min, Adjustable pedestal legs: 100 mm.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame, Dimensions: 300×1500 mm
• Speed: 8-13 m/min, Adjustable legs.
• Load capacity: 20 kg across the entire belt.

• Conveyor Belt PU with Aluminum Profile Frame, Dimensions: 500×4500 mm
• Speed: 8-13 m/min, Adjustable legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame, Dimensions: 300×6000 mm
• Speed: 8-13 m/min, Adjustable legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table, Dimensions: 500×3000 mm
• Speed: 3-5 m/min, Adjustable legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table, Dimensions: 400×3000 mm
• Speed: 3-5 m/min, Adjustable legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame, Dimensions: 500×1500 mm
• Speed: 8-13 m/min, Adjustable legs.
• Load capacity: 30 kg across the entire belt.

• Steel Structure Stainless 304 Conveyor Solid
• Speed: 3-5 m/min, Adjustable legs.
• Load capacity: 40 kg across the entire belt.

• Conveyor Belt PVC, Dimensions: 300x1500x750 mm
• Conveyor Belt PVC, Dimensions: 300x1000x750 mm
• Conveyor Belt PVC, Dimensions: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame, Dimensions: 300×1500 mm
• Speed: 8-13 m/min, Adjustable legs.
• Load capacity: 30 kg across the entire belt.

• Conveyor Mesh Belt, Stainless Steel 304 Construction, Dimensions: 600×1000 mm
• Speed: 3-5 m/min, Adjustable legs.
• Load capacity: 40 kg across the entire belt.

Conveyor Belt PVC Speed Specifications

England

Thai

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product load capacity on conveyor: approximately 30 kg

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Belts

1. Material and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or conveying non-oily/greasy materials.
     ❌ Not resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Better resistance to oils, fats, and chemicals than PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear strength and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food, pharmaceutical, and applications involving oil or grease exposure.
   • Stainless Steel → High-hygiene environments or conditions with high heat or humidity, e.g., food and beverage processing, heavy industry.
