Description

Fiber Laser Cutting Machine Nozzles

Single-layer and Double-layer Nozzle Types

Nozzle Type	Application	Assist Gas	Size Range
Single Layer	For cutting Stainless Steel, Aluminum, etc.	Nitrogen	1.4 – 3.0 mm
Double Layer	For cutting Carbon Steel	Oxygen	1.5 – 3.0 mm

1. Single-layer Nozzles: Optimized for cutting stainless steel and aluminum. Utilizes nitrogen as the assist gas, providing efficient cutting performance across a size range of 1.4-3.0 mm.

2. Double-layer Nozzles: Primarily used for cutting carbon steel with oxygen as the assist gas. These nozzles offer effective cutting capabilities within a size range of 1.5-3.0 mm.

Laser Nozzle Sizing Guide

nozzle laser fiber วัด size

✅ Fiber Laser Nozzle – Regular Section M11

m11 s

M11 Single

Single M11 1.0mm Single M11 1.2mm Single M11 1.5mm Single M11 2.0mm
Single M11 2.5mm Single M11 3.0mm Single M11 3.5mm Single M11 4.0mm

M11 Double

Double M11 1.0mm Double M11 1.2mm Double M11 1.5mm Double M11 2.0mm
Double M11 2.5mm Double M11 3.0mm Double M11 3.5mm Double M11 4.0mm

✅ Fiber Laser Nozzle – Regular Section M12

m12 s

M12 Single

Single M12 1.0mm Single M12 1.2mm Single M12 1.5mm Single M12 2.0mm

M12 Double

Single M12 2.5mm Single M12 3.0mm Single M12 3.5mm Single M12 4.0mm

✅ Fiber Laser Nozzle – Regular Section M14

m14 s

M14 Single

Single M14 1.0mm Single M14 1.2mm Single M14 1.5mm Single M14 2.0mm
Single M14 2.5mm Single M14 3.0mm Single M14 3.5mm Single M14 4.0mm

M14 Double

Double M14 1.0mm Double M14 1.2mm Double M14 1.5mm Double M14 2.0mm

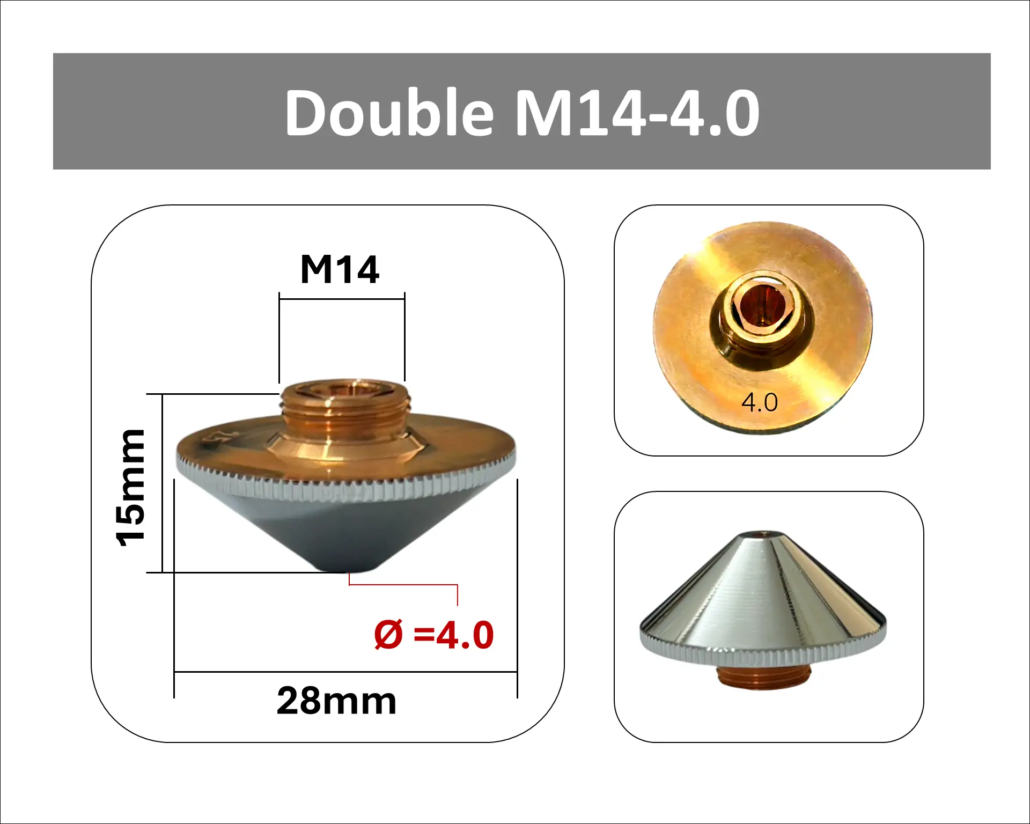

Double M14 2.5mm Double M14 3.0mm Double M14 3.5mm Double M14 4.0mm

Internal Diameter Specifications

Example Images of Various Laser Nozzle Sizes

Laser nozzle, Outsider Diameter 10.7-32mm
1.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
2.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
3.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
4.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
5.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
nozzle laser fiber
