Fiber Laser Cutting Nozzle
Single-layer and Double-layer Laser Nozzle Types
| Nozzle Type | Application | Auxiliary Gas | Size Range |
|---|---|---|---|
| Single Layer | For cutting Stainless Steel, Aluminum, etc. | Nitrogen | 1.4 – 3.0 mm |
| Double Layer | For cutting Carbon Steel | Oxygen | 1.5 – 3.0 mm |
1. Single-layer Nozzle: Primarily used for cutting Stainless Steel and Aluminum. It utilizes Nitrogen as the auxiliary gas and is available in sizes ranging from 1.4 mm to 3.0 mm for efficient cutting.
2. Double-layer Nozzle: Typically employed for cutting Carbon Steel, utilizing Oxygen as the auxiliary gas. Available in sizes from 1.5 mm to 3.0 mm, these nozzles ensure effective cutting performance.
Laser Nozzle Measurement Guide
✅ Fiber Laser Nozzle – Regular Section M11
M11 Single Layer Nozzles:
M11 Double Layer Nozzles:
✅ Fiber Laser Nozzle – Regular Section M12

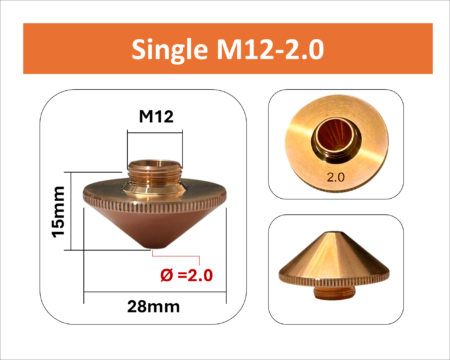

M12 Single Layer Nozzles:
M12 Double Layer Nozzles:
✅ Fiber Laser Nozzle – Regular Section M14
M14 Single Layer Nozzles:
M14 Double Layer Nozzles:
Inside Diameter Specifications
Example Images of Various Laser Nozzle Sizes
