Description

Fiber Laser Cutting Machine Nozzle

Single-Layer and Double-Layer Laser Nozzle Types

Nozzle Type	Application	Assist Gas	Size Range
Single Layer	For cutting Stainless Steel, Aluminum, etc.	Nitrogen (N2)	1.4 – 3.0 mm
Double Layer	For cutting Carbon Steel	Oxygen (O2)	1.5 – 3.0 mm

1. Single-Layer Nozzle: Optimized for cutting Stainless Steel and Aluminum. Utilizes Nitrogen as an assist gas. Available in sizes from 1.4mm to 3.0mm for efficient cutting performance.

2. Double-Layer Nozzle: Primarily designed for cutting Carbon Steel. Employs Oxygen as an assist gas. Available in sizes from 1.5mm to 3.0mm for effective cutting results.

Laser Nozzle Dimensional Specifications

nozzle laser fiber วัด size

✅ Fiber Laser Nozzle – Regular Section M11

m11 s

M11 Single
Single M11 1.0mm Single M11 1.2mm Single M11 1.5mm Single M11 2.0mm
Single M11 2.5mm Single M11 3.0mm Single M11 3.5mm Single M11 4.0mm

M11 Double
Double M11 1.0mm Double M11 1.2mm Double M11 1.5mm Double M11 2.0mm
Double M11 2.5mm Double M11 3.0mm Double M11 3.5mm Double M11 4.0mm

✅ Fiber Laser Nozzle – Regular Section M12

m12 s

M12 Single
Single M12 1.0mm Single M12 1.2mm Single M12 1.5mm Single M12 2.0mm
Single M12 2.5mm Single M12 3.0mm Single M12 3.5mm Single M12 4.0mm

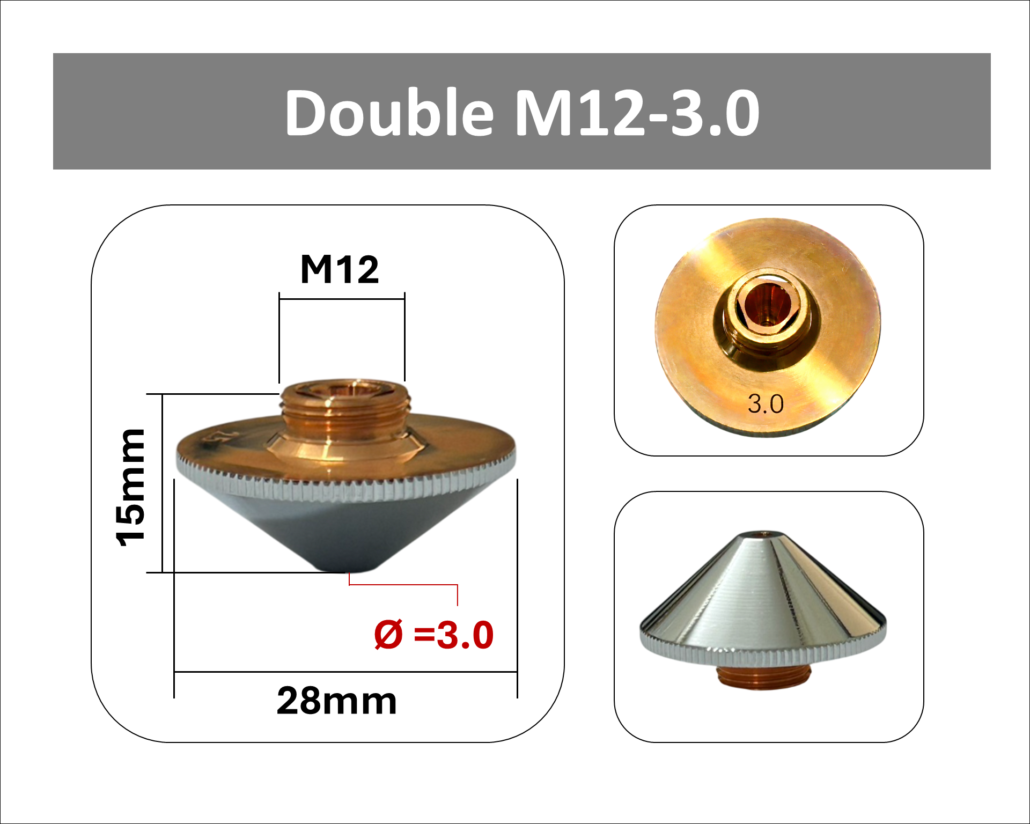

M12 Double
Double M12 1.0mm Double M12 1.2mm Double M12 1.5mm Double M12 2.0mm
Double M12 2.5mm Double M12 3.0mm Double M12 3.5mm Double M12 4.0mm

✅ Fiber Laser Nozzle – Regular Section M14

m14 s

M14 Single
Single M14 1.0mm Single M14 1.2mm Single M14 1.5mm Single M14 2.0mm
Single M14 2.5mm Single M14 3.0mm Single M14 3.5mm Single M14 4.0mm

M14 Double
Double M14 1.0mm Double M14 1.2mm Double M14 1.5mm Double M14 2.0mm
Double M14 2.5mm Double M14 3.0mm Double M14 3.5mm Double M14 4.0mm

Inside Diameter Specifications

Example Images of Various Laser Nozzle Sizes

Laser nozzle, Outsider Diameter 10.7-32mm
1.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
2.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
3.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
4.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
5.Laser%20nozzle,%20Outsider%20Diameter%2010.7 32mm
nozzle laser fiber
