Description
Fiber Laser Cutting Machine Nozzles
Single-Layer and Double-Layer Nozzle Types
| Nozzle Type | Application | Assist Gas | Size Range |
|---|---|---|---|
| Single Layer | For cutting stainless steel, aluminum, etc. | Nitrogen (N2) | 1.4 – 3.0 mm |
| Double Layer | For cutting carbon steel. | Oxygen (O2) | 1.5 – 3.0 mm |
1. Single-Layer Nozzles: Designed for efficient cutting of stainless steel and aluminum. These nozzles utilize Nitrogen as the assist gas and are available in sizes ranging from 1.4 mm to 3.0 mm.
2. Double-Layer Nozzles: Primarily used for cutting carbon steel, employing Oxygen as the assist gas. These nozzles are available in sizes from 1.5 mm to 3.0 mm for optimal cutting performance.
Laser Nozzle Sizing Guide

✅ M11 Series Fiber Laser Nozzles – Regular Section

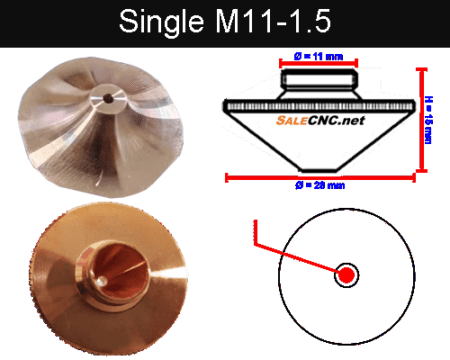

M11 Single Layer Nozzles








M11 Double Layer Nozzles








✅ M12 Series Fiber Laser Nozzles – Regular Section

M12 Single Layer Nozzles








M12 Double Layer Nozzles








✅ M14 Series Fiber Laser Nozzles – Regular Section

M14 Single Layer Nozzles








M14 Double Layer Nozzles








Inside Diameter Specifications

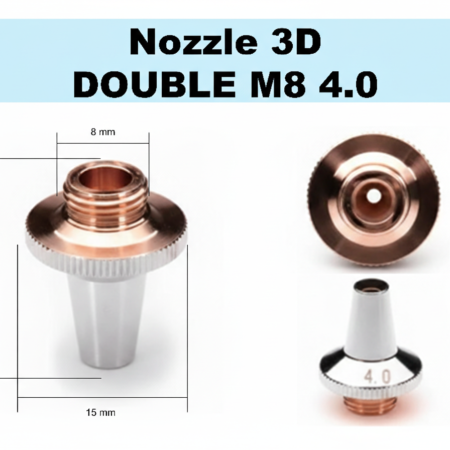

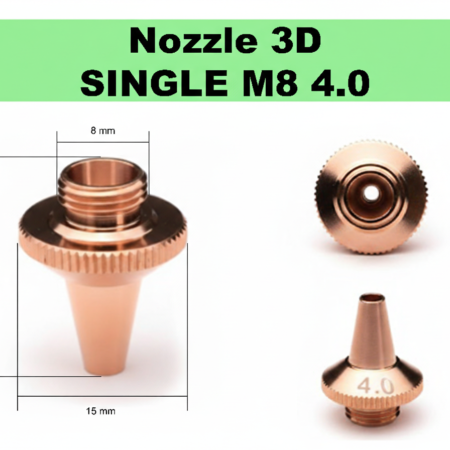

Illustrative Images of Various Laser Nozzle Sizes
