Fiber Laser Cutting Machine Nozzles
Single-layer and Double-layer Fiber Laser Nozzles
| Nozzle Type | Application | Assist Gas | Size Range |
|---|---|---|---|
| Single Layer | For cutting Stainless Steel, Aluminum, etc. | Nitrogen | 1.4 – 3.0 mm |
| Double Layer | For cutting Carbon Steel. | Oxygen | 1.5 – 3.0 mm |
1. Single-layer Nozzles: Primarily used for cutting stainless steel and aluminum. These nozzles utilize nitrogen as the assist gas and are available in sizes ranging from 1.4 mm to 3.0 mm for efficient cutting performance.
2. Double-layer Nozzles: Generally employed for cutting carbon steel. These nozzles use oxygen as the assist gas and are available in sizes ranging from 1.5 mm to 3.0 mm, ensuring effective cutting.
Laser Nozzle Sizing
✅ M11 Series Fiber Laser Nozzles – Regular Section

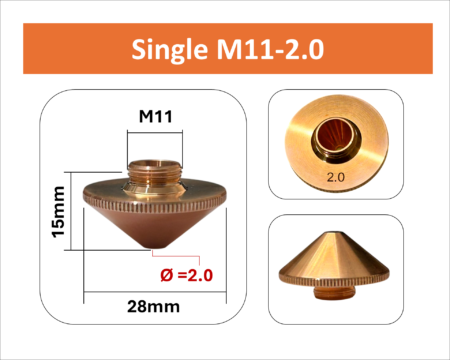

M11 Single Layer Nozzles
M11 Double Layer Nozzles
✅ M12 Series Fiber Laser Nozzles – Regular Section
M12 Single Layer Nozzles
M12 Double Layer Nozzles
✅ M14 Series Fiber Laser Nozzles – Regular Section
M14 Single Layer Nozzles
M14 Double Layer Nozzles
Inside Diameter Specifications
Example Images of Various Laser Nozzle Sizes
