Description

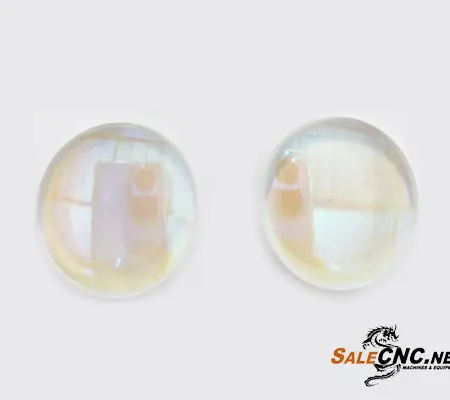

FOCUS LENS D20-F800
For Laser Machine

Laser Rust Removal 1500W Laser Cleaning Machine

The 3-in-1 Laser Machine is equipped with a wire feeder, capable of rust removal, welding, and cutting. It offers high operational speed, enhanced efficiency, and improved results for continuous long-term use. The welding process requires minimal consumables, ensuring extended service life. The standard wire feeder unit reduces part gaps and enhances weld quality. This system can also be integrated with robots by mounting the laser head onto a robotic arm.

• Cleaning: Removes rust and cleans all surfaces.
• Welding: Performs various welding types, including continuous and spot welding.
• Cutting: Cuts steel up to a maximum thickness of 4 millimeters.

Machine Components:

• Machine Dimensions: 710x420x1025 mm
• Wire Feeder Unit
• Chiller: For machine coolant circulation
• Touchscreen Display
• Control Buttons
• Air Inlet: For lens cooling system
• Cooling Fan: For machine heat dissipation
• Connections: For welding equipment and wire feeder
• Laser Gun

Laser Gun Components:

• Nozzle
• Safety Switch
• Air Hose
• Water Hose
• Gas Hose

Nozzle Types:

• A Copper Beak, No silk delivery
• B Copper Beak, No silk delivery
• C Copper Beak, No silk delivery
• AS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• BS-16 Copper Beak, Wire feed 1.6 mm
• CS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• DS-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• ES-12 Copper Beak, Wire feed 0.8/1.0/1.2 mm
• FS-16 Copper Beak, Wire feed 1.6 mm

Product Specifications:

–> Fiber Laser 3 in 1 – 1,000W

• Power: 1,000W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting Position: Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Depending on material)
• Wire Feeder: Standard wire feeding speed 38-600 mm/min
• Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Working Environment: 10-40°C, humidity 10-85%, non-condensing
• Rated Output: 3.5 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

–> Fiber Laser 3 in 1 – 1,500W

• Power: 1,500W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting Position: Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Depending on material)
• Wire Feeder: Standard wire feeding speed 38-600 mm/min
• Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Working Environment: 10-40°C, humidity 10-85%, non-condensing
• Rated Output: 4.5 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg

–> Fiber Laser 3 in 1 – 2,000W

• Power: 2,000W
• Laser Wavelength: 1080±10 nm
• Mode of Operation: Connect/Disable
• Power Range: 10-100%
• Fiber Diameter: 25-50
• Sighting Position: Glow
• Fiber Length: 10 m
• Welding Speed: 0-120 mm/s
• Applicable Thickness: <3.5 mm (Depending on material)
• Wire Feeder: Standard wire feeding speed 38-600 mm/min
• Feed Diameter: 0.8/1.0/1.2/1.6/2.0 mm
• Cooling Mode: Chiller water cooling
• Working Environment: 10-40°C, humidity 10-85%, non-condensing
• Rated Output: 6 kW
• Operating Voltage: 220±20 V, AC, PE, 50-60 Hz
• Size: 710x420x1025 mm
• Weight: 180 kg
