Curved Belt Conveyor
Belt 500mm 180 Degree
The 180-degree curved belt conveyor, with a 500 mm belt, is an industrial equipment designed to change the direction of product flow within a system. It optimizes space utilization and enhances production line efficiency.

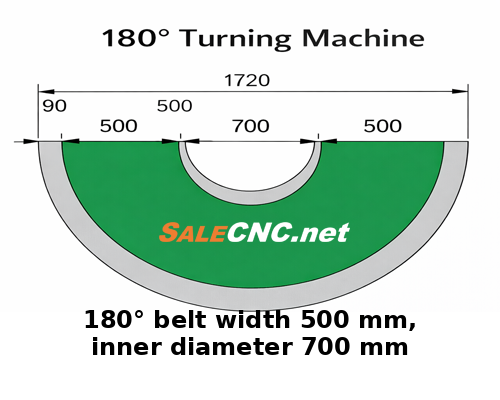

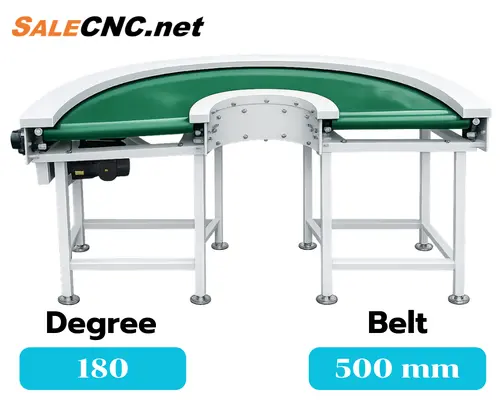

180° Curved Belt Conveyor System (Belt Width: 500 mm)
This 180-degree curved belt conveyor is engineered to alter the direction of product transport on production lines. It conserves valuable factory floor space, ensures seamless system continuity, and minimizes manual handling requirements. It is ideally suited for industrial applications demanding compact machinery layouts, such as packing lines, assembly lines, food and beverage processing, logistics, and e-commerce operations.

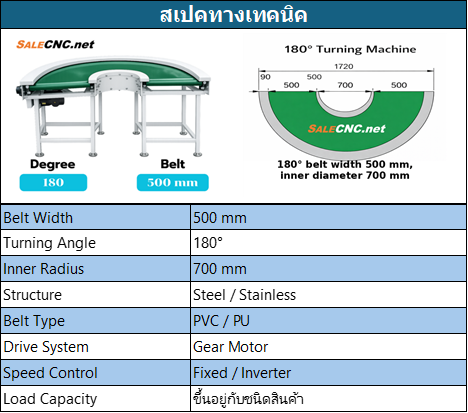

Product Details
-
Type: Curved Belt Conveyor
-
Turning Radius: 180 Degrees
-
Belt Width: 500 mm
-
Inner Diameter: 700 mm
-
Frame Construction: Powder-Coated Steel / Stainless Steel (Customizable)
-
Belt Material: PVC / PU / Food Grade (Selectable based on application)
-
Drive System: Industrial Gear Motor
-
Speed Control: Inverter Compatible (Optional)
-
Machine Height: Customizable to site requirements
Product Highlights
-
Facilitates a 180° change in conveying direction without the need for manual product lifting.
-
Optimizes factory space and enhances production line efficiency.
-
Robust construction designed for continuous industrial operation.
-
Wear-resistant belt that is easy to maintain.
-
Customizable dimensions, height, speed, and materials are available.
Application Suitability
-
Packaging Lines
-
Food and Beverage Industry
-
Electronics Components Industry
-
Warehousing / Logistics
-
Factory Product Conveying Systems
