Curved Belt Conveyor
Belt 400mm 180 Degree
The 180-degree curved belt conveyor with a 400 mm belt width is an essential component for altering product conveyance direction within industrial systems. It is designed to optimize space utilization and enhance production line efficiency.

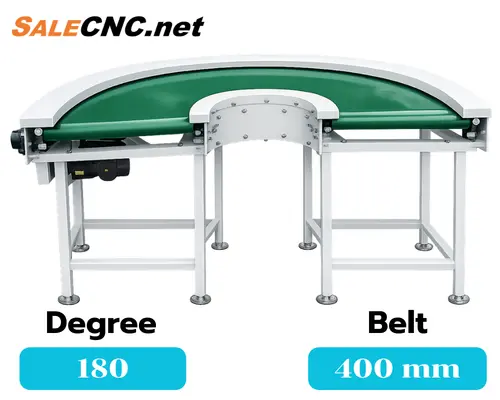

180° Curved Belt Conveyor (Belt Width: 400 mm)
The 180-degree curved belt conveyor is engineered to change product conveyance direction on the production line. This design conserves valuable floor space, ensures continuous system flow, and minimizes manual handling. It is ideally suited for industrial applications requiring compact machinery layouts, such as packing lines, assembly lines, food and beverage processing, logistics, and e-commerce operations.

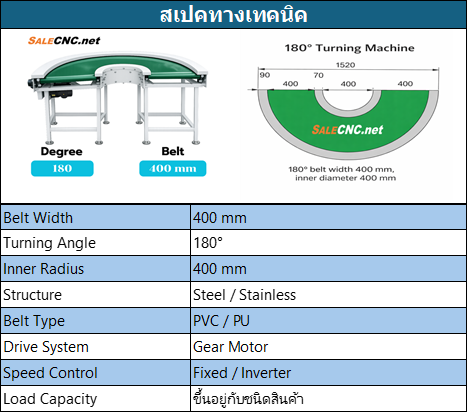

Product Details
-
Type: Curved Belt Conveyor
-
Curve Angle: 180 Degree
-

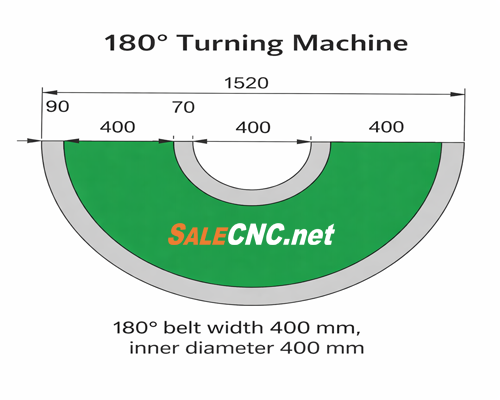

Belt Width: 400 mm
-
Inner Diameter: 400 mm
-
Frame Construction: Painted Steel / Stainless Steel (Customizable)
-
Belt Material: PVC / PU / Food Grade (Selectable based on application)
-
Drive System: Industrial Gear Motor
-
Speed Control: Inverter Compatible (Optional)
-
Machine Height: Customizable to site requirements
-
Rotation Direction: Left / Right (Selectable)
Key Features
-
Facilitates a 180° change in conveyance direction without manual product lifting.
-
Optimizes factory space and enhances production line efficiency.
-
Robust construction designed for continuous industrial operation.
-
Wear-resistant belt material for easy maintenance.
-
Customizable dimensions, height, speed, and materials available.
Suitable Applications
-
Packaging Lines
-
Food and Beverage Industry
-
Electronic Component Industry
-
Warehousing / Logistics
-
Factory Product Conveying Systems
