Description

Conveyor Belt PVC

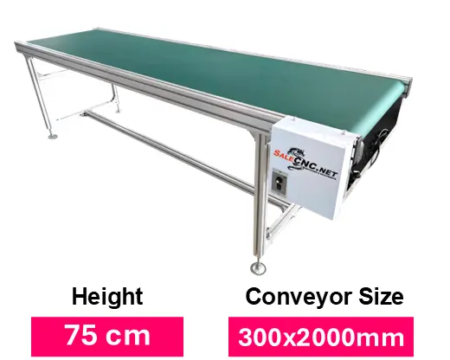

Conveyor Belt – PVC Type

Standard Height (Non-Adjustable)

• PVC Conveyor Belt for material handling and transport.
• Features an electric motor with adjustable belt speed.
• Facilitates easy material transport and handling; simple installation and operation.
• Standard height: 75 cm (Non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyvinylchloride (PVC)

• PVC offers excellent resistance to high temperatures, tensile stress, and tearing.
• Features high wear resistance.
• Good resistance to oils and is odor-resistant.
• Durable and resistant to abrasion.

[conveyor_img_link]

Product Example:

• Conveyor Belt PU 600×2500 mm
• Motor: 200W
• Speed: 16-25 m/min
• Includes adjustable legs and free-spinning casters.

Product Example:

Inverter Motor Option – Motor speed ratio: 30-40 meters/minute. Additional cost: 7,500 THB.

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min. Adjustable legs: 100 mm.
• Load capacity: 3 Kg. across the entire belt.
• Price: 32,000 THB.

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min. Adjustable legs: 100 mm.
• Load capacity: 3 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min. Adjustable legs: 100 mm.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Load capacity: 20 Kg. across the entire belt.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min. Adjustable legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with 304 Stainless Steel Frame and Table: 500×3000 mm
• Speed: 3-5 m/min. Adjustable legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with 304 Stainless Steel Frame and Table: 400×3000 mm
• Speed: 3-5 m/min. Adjustable legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with 304 Stainless Steel Frame: 500×1500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Load capacity: 30 Kg. across the entire belt.

• Steel Structure Stainless 304 Conveyor (Solid Belt)

• Speed: 3-5 m/min. Adjustable legs.
• Load capacity: 40 Kg. across the entire belt.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable legs.
• Load capacity: 30 Kg. across the entire belt.

• Conveyor Belt (Stainless Steel Mesh) with 304 Stainless Steel Frame: 600×1000 mm
• Speed: 3-5 m/min. Adjustable legs.
• Load capacity: 40 Kg. across the entire belt.

Conveyor Belt PVC Speed Specifications

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product on conveyor: approximately 30 kg

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

• Materials and Properties

  • PVC (Polyvinyl Chloride)
    ✅ Flexible and offers moderate chemical resistance.
    ✅ More economical than PU and stainless steel.
    ✅ Suitable for general applications such as packaging or material transport without oil and grease.
    ❌ Not resistant to high temperatures and may wear faster than PU.
  • PU (Polyurethane)
    ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
    ✅ Smoother surface, ideal for food and pharmaceutical industries.
    ✅ Higher resistance to tearing and longer lifespan than PVC.
    ❌ Higher cost than PVC.
  • Stainless Steel
    ✅ High strength, resistant to impact and wear.
    ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
    ✅ Resistant to high temperatures and chemicals.
    ❌ High cost and potentially heavy.

• Suitable Applications

  • PVC → General goods transport (e.g., packaging, electronics).
  • PU → Food and pharmaceutical industries, applications involving contact with oil or grease.
  • Stainless Steel → High-hygiene applications or environments with high heat or humidity (e.g., food and beverage manufacturing, heavy industry).
