Description

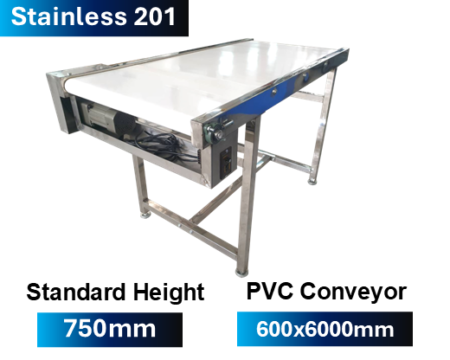

Conveyor Belt PVC

Conveyor Belt PVC, Material Type: PVC (Polyvinylchloride)

Frame Construction: Stainless 201 (Legs not adjustable for height)

Polyvinylchloride (PVC) Properties:

• Excellent resistance to high temperatures, tensile strength, and cutting/puncture.
• High wear resistance.
• Good resistance to oils and is odor-resistant.
• Durable and resistant to abrasion.

Product Examples:

Motor Option: Inverter Motor with speed ratio of 30-40 meters/minute. Additional cost: 7500 THB.

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min. Adjustable foot height: 100 mm.
• Load Capacity: 3 Kg. across the entire belt.
• Price: 32,000 THB.

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min. Adjustable foot height: 100 mm.
• Load Capacity: 3 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min. Adjustable foot height: 100 mm.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable feet.
• Load Capacity: 20 Kg. across the entire belt.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min. Adjustable feet.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min. Adjustable feet.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min. Adjustable feet.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame: 400×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min. Adjustable feet.
• Load Capacity: 30 Kg. across the entire belt.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min. Adjustable feet.
• Load Capacity: 30 Kg. across the entire belt.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min. Adjustable feet.
• Load Capacity: 40 Kg. across the entire belt.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Weight Capacity: 2-3 Kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable feet.
• Load Capacity: 30 Kg. across the entire belt.

• Stainless Steel Mesh Conveyor with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min. Adjustable feet.
• Load Capacity: 40 Kg. across the entire belt.

Conveyor Belt PVC Speed Specifications

Product on conveyor approximately 30kg

• Standard Motor: 120W. Optional Motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and Stainless Steel.
     ✅ Suitable for general applications such as packaging or material transport not involving oils and fats.
     ❌ Not resistant to high temperatures and may wear faster than PU.

   • PU (Polyurethane)
     ✅ Superior resistance to oils, fats, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer service life than PVC.
     ❌ Higher cost than PVC.

   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high levels of hygiene, such as food and beverage processing.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier weight.

2. Recommended Applications

   • PVC → General goods transportation, such as packaging and electronics.
   • PU → Food, pharmaceutical industries, and applications involving contact with oils or fats.
   • Stainless Steel → Applications demanding high hygiene standards or environments with high heat or humidity, such as food and beverage manufacturing plants, and heavy industries.
