Description

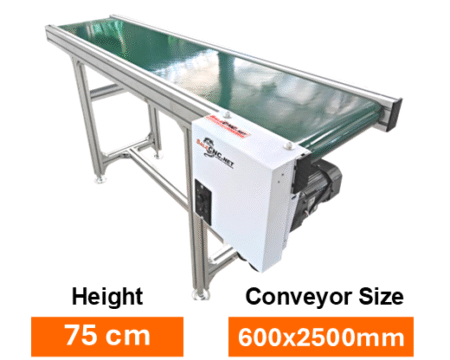

Conveyor Belt PVC

Standard height (Fixed)

• PVC Conveyor Belt for transporting items.
• Equipped with an electric motor, adjustable speed control.
• Facilitates easy material handling and conveying; simple installation and operation.
• Standard machine height: 75 cm. (non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyvinylchloride (PVC)

• PVC offers excellent resistance to high temperatures, tensile strength, and puncture resistance.
• PVC exhibits good wear resistance.
• PVC provides good resistance to oils and is odor-resistant.
• PVC is robust and resistant to abrasion.

Product Examples:

Inverter Motor with Speed Ratio: 30-40 meters/minute (Additional Charge: 7500 Baht)

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Total load capacity: 3 Kg.
• Price: 32,000 Baht

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Total load capacity: 3 Kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm.
• Total load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total load capacity: 20 Kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame & Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame & Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min; Adjustable Legs.
• Total load capacity: 40 Kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total load capacity: 30 Kg.

• Conveyor Mesh Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

[English specifications are implied to be detailed in the image above, matching the Thai specifications.]

Video Demonstration

Product Load Capacity

• Standard motor: 120W. Optional motors available: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties
   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transporting materials without oil or grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Better resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer lifespan than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier weight.
2. Recommended Applications
   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene standards, or environments with high heat or humidity, e.g., food and beverage manufacturing, heavy industry.
