Description

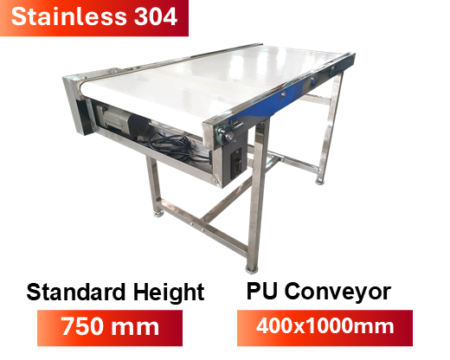

Conveyor Belt PU

Structure: Stainless 304 (Height adjustable legs are not available)

• Polyurethane (PU) conveyor belt for material handling and transfer.
• Equipped with an electric motor for adjustable speed control.
• Facilitates easy material handling and transportation; simple to install and operate.
• Standard height: 75 cm. (Non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyurethane Belt is favored across various industries due to its distinct advantages:

1. High Durability: Polyurethane offers superior strength and abrasion resistance, making it ideal for demanding applications involving heavy material transport.
2. Chemical Resistance: PU exhibits excellent resistance to various chemicals, including certain acids and bases, suitable for environments with chemical exposure or related industrial processes.
3. High-Temperature Tolerance: PU belts can withstand higher temperatures compared to many other materials, ensuring reliable performance in elevated temperature conditions.
4. Flexibility and Customization: The inherent flexibility of polyurethane allows for precise shaping and sizing to meet specific application requirements. It can also be engineered for enhanced grip or high flexibility characteristics.
5. Scratch Resistance: PU’s good resistance to scratching is beneficial for applications involving contact with rough or abrasive materials.
6. Lightweight Construction: PU belts are generally lighter than other types, simplifying installation and reducing operational resistance.
7. Tensile Strength: Polyurethane boasts high tensile and compressive strength, ensuring efficient operation in conveying and material transport systems.
8. Quiet Operation: PU belts typically operate more quietly than other belt types, contributing to a reduced noise environment in manufacturing facilities.

These properties make PU belts suitable for diverse applications, including the food and beverage industry, automotive manufacturing, and general factory material handling.

Motor Options:

Inverter Motor with Speed Ratio: 30-40 meters/minute. Additional Cost: 7500 Baht

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min; Adjustable legs: 100 mm.
• Load Capacity: 3 Kg. (total belt capacity)
• Price: 32,000 Baht

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min; Adjustable legs: 100 mm.
• Load Capacity: 3 Kg. (total belt capacity)

• Conveyor Belt PU, Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable legs: 100 mm.
• Load Capacity: 30 Kg. (total belt capacity)

• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Load Capacity: 20 Kg. (total belt capacity)

• Conveyor Belt PU, Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Load Capacity: 30 Kg. (total belt capacity)

• Conveyor Belt PVC, Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable legs.
• Load Capacity: 30 Kg. (total belt capacity)

• Conveyor Belt PU, Stainless Steel 304 Frame + Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable legs.
• Load Capacity: 30 Kg. (total belt capacity)

• Conveyor Belt PU, Stainless Steel 304 Frame + Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable legs.
• Load Capacity: 30 Kg. (total belt capacity)

• Conveyor Belt PU, Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Load Capacity: 30 Kg. (total belt capacity)

• Steel Structure Stainless 304 Conveyor Solid Belt
• Speed: 3-5 m/min; Adjustable legs.
• Load Capacity: 40 Kg. (total belt capacity)

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Load Capacity: 30 Kg. (total belt capacity)

• Conveyor Belt Stainless Steel Mesh, Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable legs.
• Load Capacity: 40 Kg. (total belt capacity)

Speed Specifications for Conveyor Belt PVC

International Specifications

Thai Specifications

Product on conveyor: approximately 30 kg.

• Standard Motor: 120W. Optional Motors: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Offers moderate flexibility and chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or conveying materials free of oil and grease.
     ❌ Not suitable for high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to fats, oils, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear resistance and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.

2. Recommended Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food, pharmaceutical, and applications involving contact with oil or grease.
   • Stainless Steel → Applications demanding high cleanliness or operating in high-temperature or humid environments, such as food processing plants, beverage production, and heavy industries.
