Conveyor Belt PU

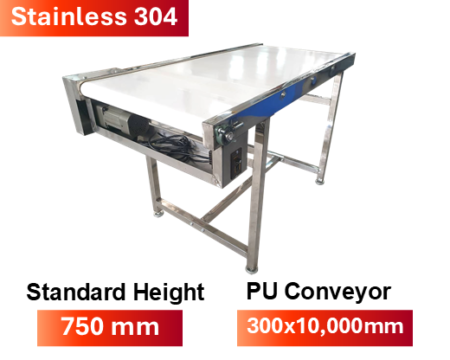

Conveyor Belt, PU Type

Stainless Steel 304 Frame (Non-Adjustable Height Legs)

• Polyurethane (PU) type conveyor belt for moving items.
• Equipped with an electric motor, allowing for adjustable belt speed.
• Facilitates easy material handling and transportation; simple to install and operate.
• Standard machine height: 75 cm (non-adjustable legs).
• Product load capacity on conveyor: approximately 30 kg.

Polyurethane (PU) Belting is favored across numerous industries due to its distinctive and advantageous properties:

1. High Durability: Polyurethane exhibits excellent strength and wear resistance, making it ideal for demanding applications involving heavy material or component transport.
2. Chemical Resistance: PU demonstrates good resistance to various chemicals, including certain acids and alkalis, suitable for environments with chemical exposure or related industrial processes.
3. High Temperature Tolerance: PU belting can withstand higher temperatures compared to many other materials, performing effectively in elevated temperature conditions.
4. Flexibility and Customization: The inherent flexibility of polyurethane allows for tailoring shapes and sizes to specific application requirements. It can also be designed for high grip or specific handling characteristics.
5. Abrasion Resistance: PU offers superior resistance to abrasion, beneficial for applications involving contact with rough materials or frequent friction.
6. Lightweight Construction: PU conveyor belts are typically lighter than other types, simplifying installation and reducing operational resistance.
7. Tensile Strength: Possessing robust tensile and compressive strength, PU belting is well-suited for material conveying and transport systems.
8. Quiet Operation: PU conveyor belts generally operate with lower noise levels, contributing to a quieter factory or production environment.

These properties make PU belting suitable for a wide array of industrial applications, including the food, automotive, and general material handling sectors.

Product Examples:

Inverter Motor Motor Speed Ratio: 30-40 m/min. Additional Cost: 7,500 Baht

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min, Adjustable Legs: 100 mm.
• Total Load Capacity: 3 kg.
• Price: 32,000 Baht

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min, Adjustable Legs: 100 mm.
• Total Load Capacity: 3 kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min, Adjustable Legs: 100 mm.
• Total Load Capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, Adjustable Legs.
• Total Load Capacity: 20 kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min, Adjustable Legs.
• Total Load Capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min, Adjustable Legs.
• Total Load Capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame and Table: 500×3000 mm
• Speed: 3-5 m/min, Adjustable Legs.
• Total Load Capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame and Table: 400×3000 mm
• Speed: 3-5 m/min, Adjustable Legs.
• Total Load Capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min, Adjustable Legs.
• Total Load Capacity: 30 kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min, Adjustable Legs.
• Total Load Capacity: 40 kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, Adjustable Legs.
• Total Load Capacity: 30 kg.

• Conveyor Mesh Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min, Adjustable Legs.
• Total Load Capacity: 40 kg.

Conveyor Belt PVC Speed Specifications

England

Thai

Product load capacity on conveyor: approximately 30 kg.

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications such as packaging or transport of non-oily/greasy materials.
     ❌ Not resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Better resistance to oils, greases, and chemicals than PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Superior resistance to tearing and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high levels of hygiene, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and can be heavy.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high hygiene standards or harsh environments (high heat, humidity), e.g., food/beverage processing, heavy industry.
