CNC Router Milling XJ1325

Description

CNC Router Milling Machine Model XJ1325

Versatile Design and High-Quality Engraving

The CNC Router Milling XJ1325 is a professional machine for engraving wood and various materials. CNC stands for Computer Numerical Control.

Its production capabilities feature high-detail accuracy and support a wide variety of work types.

This includes cutting wood, plastics, acrylics, soft metals, and many other industrial materials.

Specifications for CNC Router Milling Model XJ-1325

• Model: XJ-1325
• Working/ Traveling Area: 1,300 x 2,500 x 200mm
• Spindle Motor: 3KW – 5KW (Optional Tool Change)
• Motor Drive Precision: Stepping Motor or Servo (Hybrid) Motor
• Drive Mechanism: Rack and Pinion (Gear-wheel)
• Resolution/Travel Speed: 12,000mm/min
• Max Engraving Speed: 12,000mm/min
• Rotating Speed of Spindle: 24,000rpm
• Engraving Tools Support: Up to 12.00mm shank
• Frame: Cast iron (Vacuum table option)
• Controlling Code: Standard G code / M code
• Operating Voltage: 1 or 3 phase (220V / 380V)
• Software Compatibility: NC Studio or Mach 3
• Packing size: 3.3 x 2.0 x 1.8m
• Gross weight: 1240kg

Key Features:

• Working Area: Large workspace (W x L x H) of 130 x 250 x 20 cm.
• Spindle Motor: Powerful 3 kW spindle motor.
• Drive Precision: High-precision motor drive using Stepping or Servo motors.
• Mechanism: Driven by a robust gear-wheel (Rack and Pinion) system.
• Resolution: Operates at a resolution speed of 12,000 mm/min.
• Engraving: High-speed engraving capability up to 12,000 mm/min.
• Tools: Supports engraving tools up to 12.00 mm.
• Control: Fully controlled via industrial G-code and M-code.
• RPM: High-speed spindle rotation at 24,000 RPM.
• Voltage: Versatile 1 or 3-phase power support (220V / 380V).
• Dimensions: Overall machine size (W x L x H) 330 x 200 x 180 cm.
• Weight: Heavy-duty build weighing 1,240 kg for maximum stability.

Ideal for:

• High-precision woodworking and furniture production.
• Advertising signs, 3D engraving, and decorative works.
• Large-scale industrial manufacturing.
• General industrial cutting and material processing.

The CNC Router Milling XJ1325 is an excellent investment for entrepreneurs looking for an affordable yet versatile tool with a superior control system.

✔ Compatible with NC Studio, Mach3, and other major CAD/CAM software.
✔ Includes control programs for precision drilling and square-form cutting.
✔ Supports daily control programs and point-by-point manual positioning (Teaching Mode).
✔ Adjustable speed calculations optimized for various materials including thick/thin metals or brass.

To cut 1mm thick aluminum, the following upgrades are required:

1. Spindle larger than 5.5 kW
2. Water cooling tray
3. Mist spray system
4. Reinforced structure for increased rigidity
5. Large Servo or Hybrid motors/drives for stability

To engrave 20mm aluminum or soft metals, the following upgrades are required:

1. Spindle larger than 5.5 kW
2. Water cooling tray
3. Mist spray system
4. Reinforced structure for increased rigidity
5. Large Servo or Hybrid motors/drives for stability

For more information, please contact [email protected] or call us today.

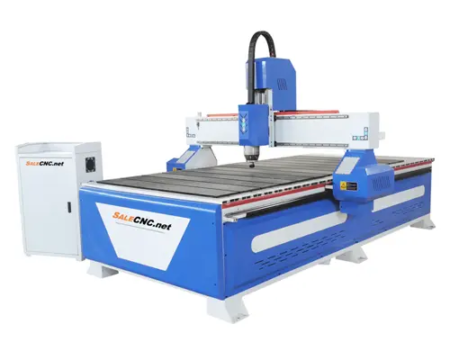

CNC Router Milling Model XJ1325

CNC Router Milling Model XJ1325

CNC Router Milling Model XJ1325

Download Brochure —-> HERE

Machine Detail

Machine Detail

Machine Components

Machine Components

Linear Rail System

Control system installation available for Mach3 or NC Studio based on customer requirements.

Portfolio & Samples

Main Reasons Why People Decide to Buy a Wood Engraving Machine

1. Accuracy and Consistency

• Engraving machines (especially CNC) are much more detailed than manual labor.
• Allows complex patterns or small text to be rendered identical on every piece.
• Perfect for mass production of wood signs, decorations, or souvenirs.

2. Time and Labor Savings

• Machines operate automatically after software setup.
• Patterns that would take hours by hand can be finished in minutes.
• Increases production capacity while using the same amount of labor.

3. Revenue Generation and Business Growth

• Used to create handmade goods, shop signs, wedding favors, and premium gifts.
• Allows for custom/personalized work (Custom Names, Logos, Unique Designs).
• Small starter machines are affordable for launching a home-based business.

4. Professionalism and Unique Style

• Gives your work a distinctive, high-end professional style.
• Can be integrated with painting, woodworking, or resin art.
• A tool that offers unlimited creative potential.

5. Multi-Material Capability (Not just wood)

• Certain models can engrave directly on Acrylic, Leather, Plastic, Glass, or Light Metals.
• Ideal for entrepreneurs looking to expand their product variety.
