Back to Laser LensDescription

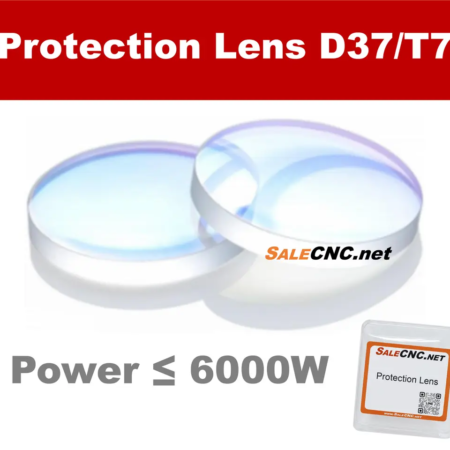

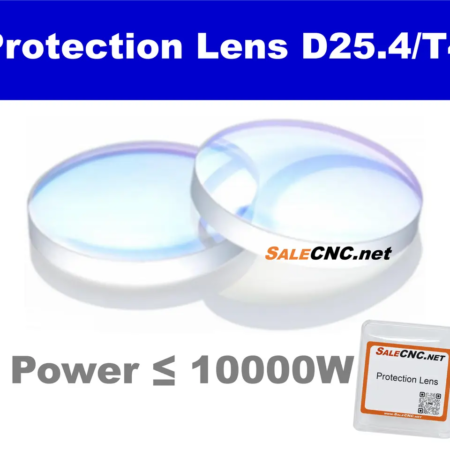

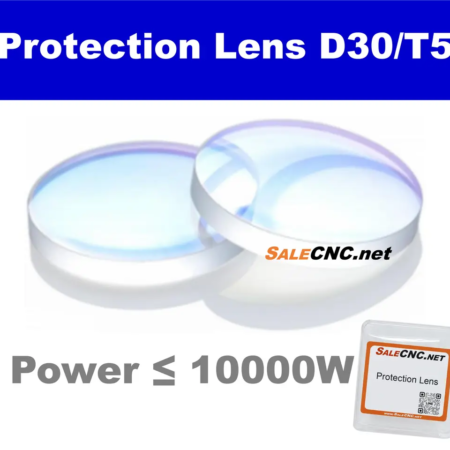

Laser Protection Lens for CNC Fiber Lasers
High-focus and stable lenses for Fiber Lasers, offering superior durability and quality.
Available Sizes
20*2/3/5, 22.35*4, 25*1.5/2/3, 28*4(27.9*4.1) 30*1.5/2/3 30*4/5, 34*5, 35*4, 36*2 , 37*7(8000-15000W) 40*3, 40*5, 50*2
Specifications
- Material: Imported JGS1
- Diameter Tolerance: +0 / -0.1 mm
- Thickness Tolerance: +/- 0.1 mm
- Coating: 1064nm AR coating on both sides, T> 99.8%
- Surface Finish: 40/20 (D≤50.8mm) 60/40 (D＞ 50.8mm)
- Parallelism: 10′-1 ‘
- Surface Accuracy: λ / 4
- High Damage Threshold: (> 15J / cm2)
Promotional Pricing
- 1-5 units: 500 THB/unit
- 6-10 units: 450 THB/unit
- 11-20 units: 400 THB/unit
- 21-30 units: 350 THB/unit
- 31-40 units: 300 THB/unit
- 41+ units: 250 THB/unit
For inquiries, please contact:
082-972-9329 (Jimmy)
083-256-5981 (Komin)
02-312-0227 (Office)
E-mail: [email protected]
