Switch On-Off AC/DC24V

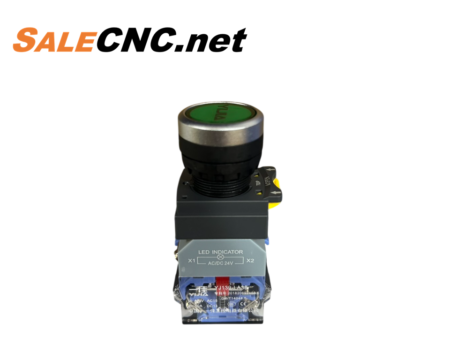

The CHINT NP4 Series is a push-lock type On-Off switch specifically designed for industrial applications. The switch head features a standard Ø22 mm diameter for compatibility with common control panels. Constructed from high-quality materials, it offers robust resistance to industrial-grade voltage and current, coupled with a secure locking mechanism for stable circuit control.
This switch operates as a momentary push-button where the first press activates the circuit (ON), and a subsequent press deactivates it (OFF). This functionality is ideal for machine control systems requiring a stay-put switch that does not necessitate continuous pressure.
Features
- Product Name: Switch On-Off
- Switch Type: Push Lock (Press to latch, press to release)
- Switch Head Size: Ø22 mm
- Switch Head Color: Green (typically used for Start/On functions)
- Safety Standards: Compliant with IEC / CE standards
- Suitable For: Control cabinets, machinery, electrical control systems, and general industrial applications.
Technical Data
| Item | Value |
|---|---|
| Rated Insulation Voltage | 660V |
| Rated Working Voltage | 220V |
| Rated Current | AC-15: 2.5A (at 380V) / 4A (at 220V) DC-13: 0.3A (at 220V) / 0.6A (at 110V) |
| Contact Type | Available as NO / NC (depending on sub-model) |
| Maximum Operating Voltage | 660V |
| Operating Temperature | -25°C to +70°C |
| Protection Degree (Dust/Water) | IP40–IP65 (model dependent) |
| Primary Material | ABS Plastic + Aluminum Metal |
Applications
- Used as Start/Stop switches for machinery.
- Suitable for electrical control panels.
- Applicable in motor or water pump control systems.
- Industrial production line machinery.
- Building electrical systems or general control equipment.
