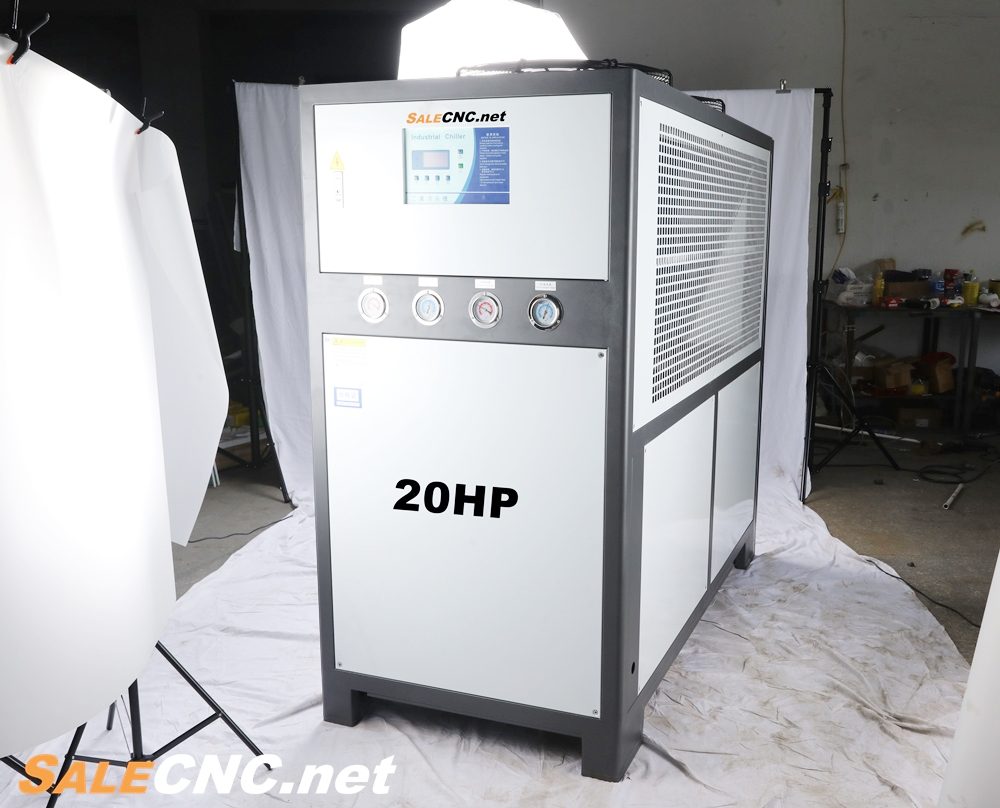

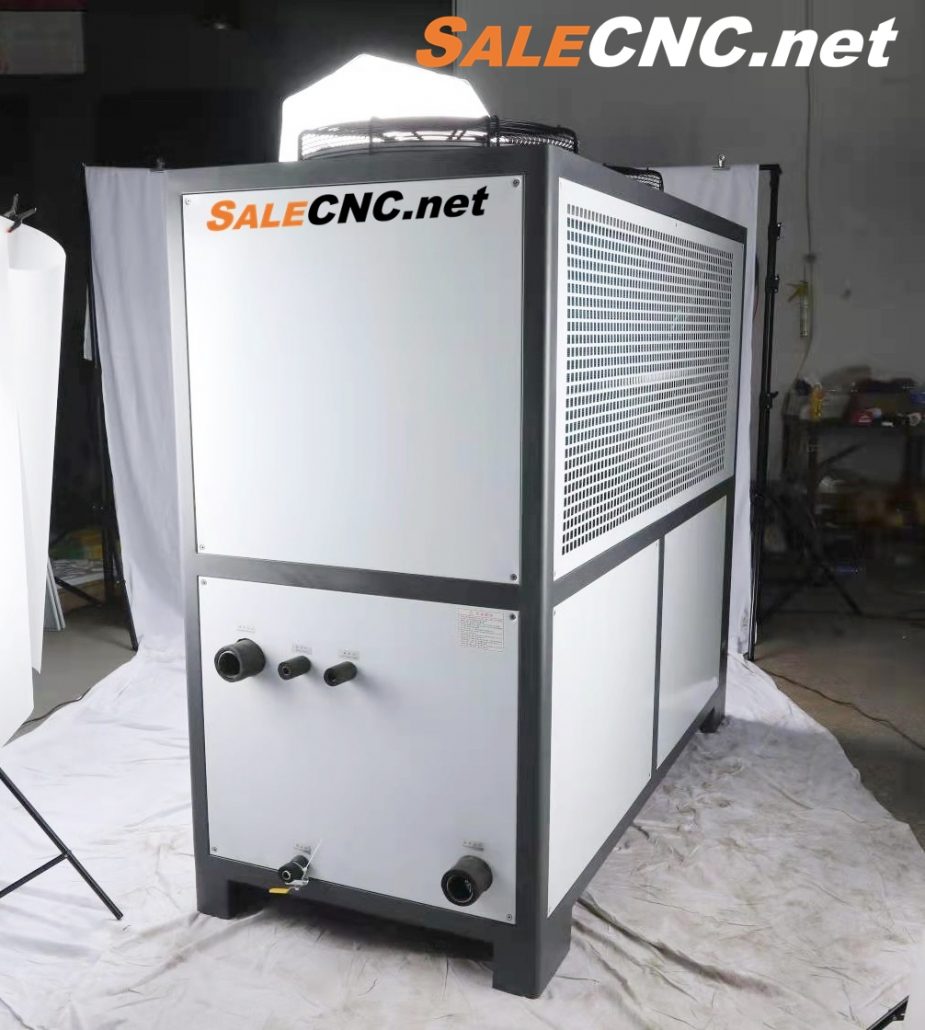

Chiller Water Cooling Unit – 20 HP Model
Industrial Cooling System for Factory Applications
Precise Temperature Control Industrial Cooling System
The 20HP Chiller Water Cooling unit is an industrial chiller designed for cooling systems used with CNC machines, laser equipment, and other factory machinery.
- Due to Thailand’s tropical climate, which experiences high temperatures year-round, industrial equipment, electronic devices, and machinery often face overheating issues. This can lead to equipment damage, reduced operational efficiency, and in severe cases, fire hazards. Excessive heat in machinery is analogous to fever in humans; elevated body temperature impairs functionality. Therefore, maintaining machine health and addressing high-temperature problems effectively is crucial, with chillers serving as an essential solution.
- Thailand is located in the tropical zone. It is hot all year round. In machine operation Electronic device and other industrial equipment when there is an increase in temperature causing the inside of the machine to overheat resulting in malfunctioning equipment not working efficiently and find more and more heat equations there may be a fire. Machine heat Is like the heat of a person’s body, when the body temperature increases beyond normal we will get sick and unable to do things at their full potential Therefore, we consider the maintenance of the machine. And can solve problems with high temperature machines with Chiller to help.
- Chillers are refrigeration units designed for cooling, primarily by circulating water to transfer heat away from the equipment they serve. They are available in various sizes, from small to industrial-scale. In manufacturing environments, chillers are vital for dissipating heat generated by machinery, extending equipment lifespan, and ensuring optimal performance.
- Chiller is a refrigeration. Water cooler There are both large and small. It is the main function of cold production reduce the temperature and cooling.
- Utilizes water as the primary medium for heat exchange and dissipation.
- Widely adopted in industrial settings to manage machine heat, prolong equipment life, and maintain operational efficiency.
- Applications include closed-loop systems, hydraulic injection molding machines, and CNC machinery.
- For example : Closed system pond, Hydraulic injection molding machine, CNC Engraving Cutting CO2, CNC Laser Engraving UV, CNC Router Milling, CNC Fiber Laser and other.
20HP Chiller Water Cooling Units for Sale
Provides cooling for CNC and fiber laser machines, ensuring stable operation by preventing overheating.
FEATURES
- Dual digital tube display for simultaneous monitoring of set and real-time temperatures.
- Full power refrigeration with micro-cooling and heating control capabilities.
- High-precision temperature control with fluctuations within ±0.5℃.
- Integrated sensor fault self-diagnosis and water flow alarm functions.
- Main board utilizes a highly integrated chip for robust anti-interference performance.
Machine Dimensions

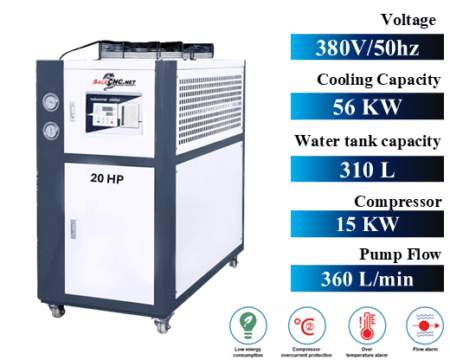

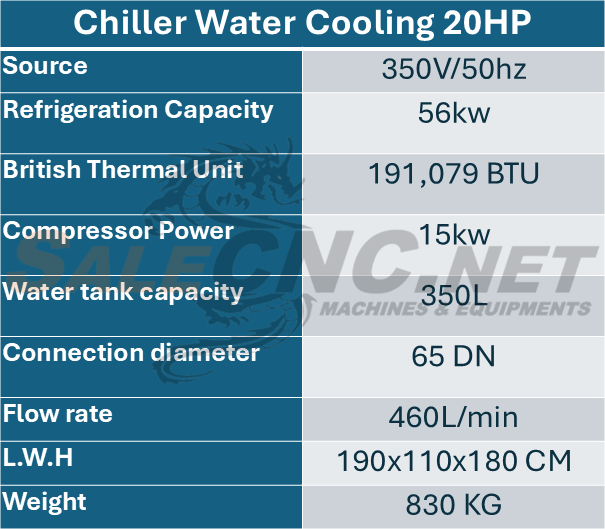

Technical Parameters
Comparison of All Chiller Water Cooling Models
Chiller Water Cooling Model HP
Operational Interaction: Laser Tube CO2 and Chiller System
Optional Accessory: Heat Exchanger
The Heat Exchanger, when connected to the chiller and submerged in water, further enhances water temperature reduction.
Available for only 3,000 Baht!!
Heat Exchanger Installation with Chiller Unit
Heat Exchanger: An optional accessory for chillers that further reduces water temperature | SALECNC.net
Chiller Water Cooling VS Cooling Tower
Cooling Towers are commonly used in industries such as plastic injection molding. However, they present several drawbacks, including large physical size, open system operation which makes maintenance difficult and increases the risk of dust and sediment contamination, potentially impacting performance and reducing lifespan.
Consequently, industrial facilities are increasingly opting for Chiller Water Cooling systems. These units are more compact, space-saving, operate as closed systems to prevent contamination, and offer extended operational longevity.
| Cooling Tower | Chiller Water Cooling |
|---|---|
| ❌ Open system | ✅ Closed system |
| ❌ Open system operation facilitates easy entry of dust and sediment, leading to clogging, rust, and negatively impacting machine usability. | ✅ Closed system operation effectively prevents dust and sediment ingress, while facilitating convenient water changes. |
| ❌ Difficult cleaning and maintenance. | ✅ Easy cleaning and maintenance. |
| ❌ Large footprint, consuming significant workspace. | ✅ Compact size, optimizing workspace utilization. |
| ❌ Shorter operational lifespan. | ✅ Extended operational lifespan. |
| ❌ Low initial cost, but higher long-term expenses due to maintenance, repairs, and reduced lifespan, leading to increased overall costs. | ✅ Higher initial cost, but offers superior value through ease of maintenance, reliability, and reduced long-term operating expenses. |
