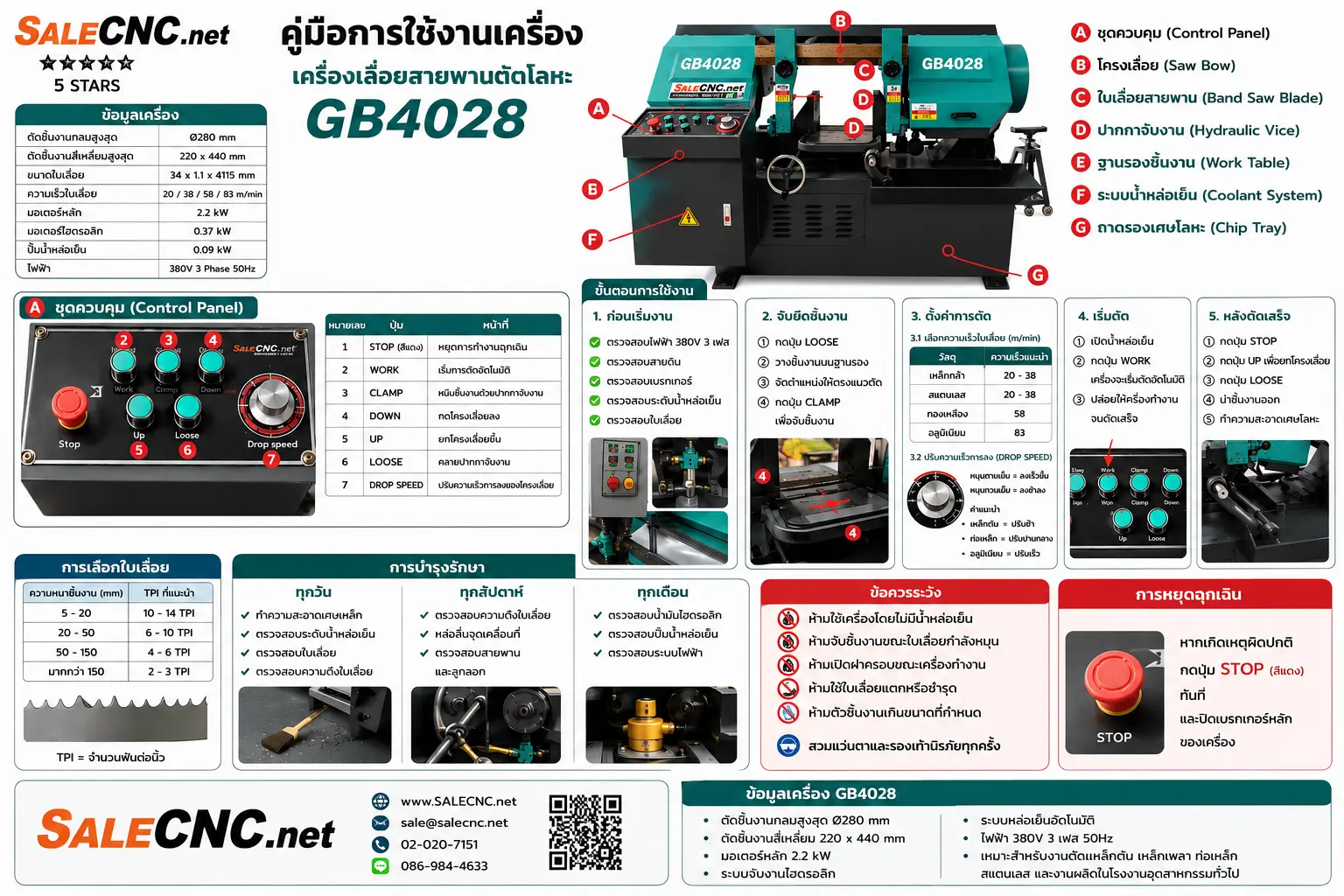

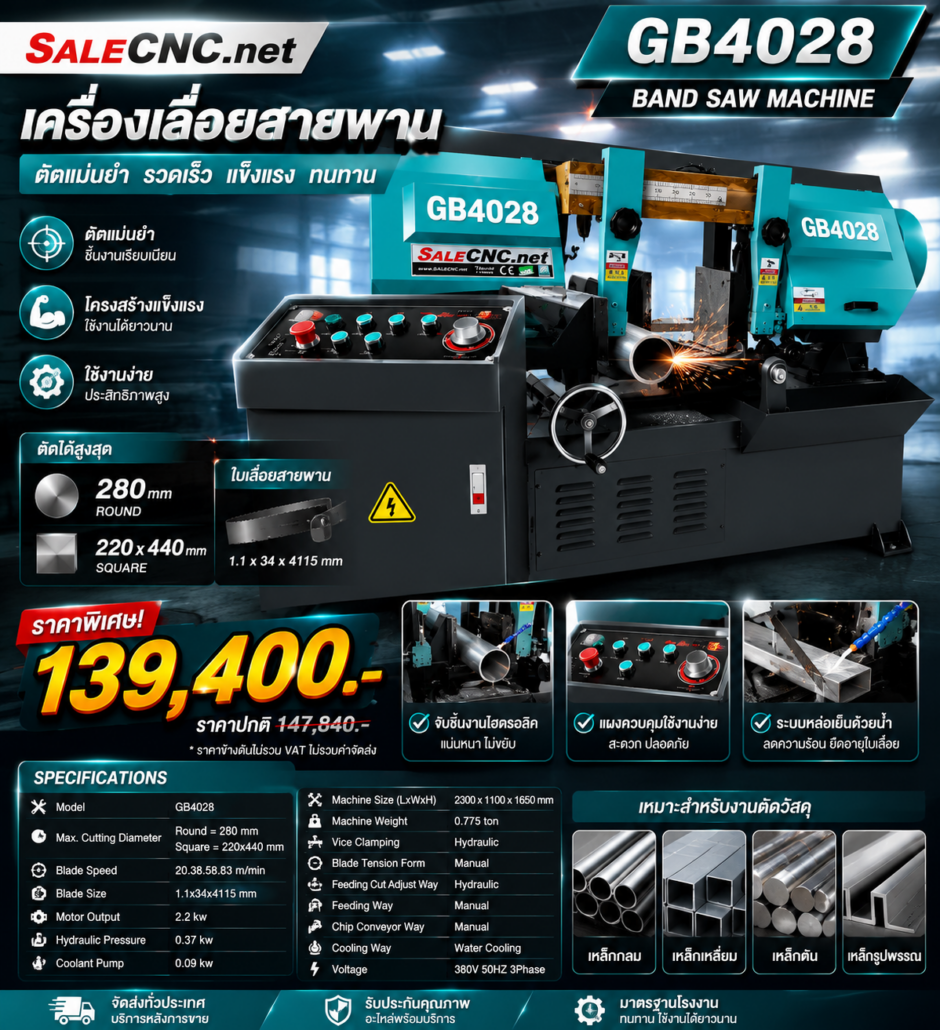

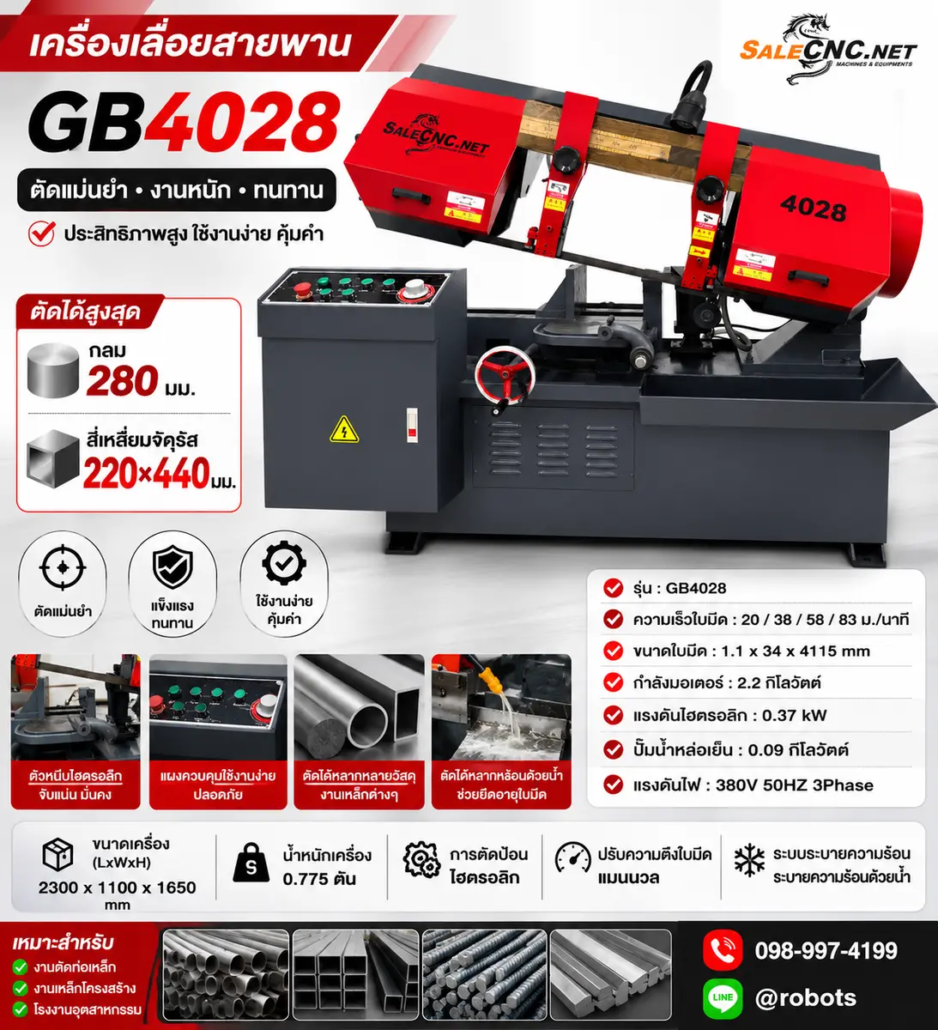

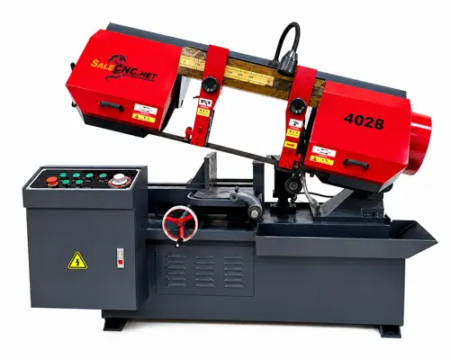

Band Saw Machine Model GB4028
Band Saw Machine GB4028 GB-4028 Blade 10x34x411.5cm Cutting Round 280mm Square 220x4400mm
Parameters
- Model : GB4028
- Max. Cutting Diameter : Round = 280 mm , Square = 220×440 mm
- Blade Speed : 20.38.58.83 m/min
- Blade Size : 1.1x34x4115 mm
- Motor Output : 2.2 kw
- Hydraulic Pressure : 0.37 kw
- Coolant Pump : 0.09 kw
- Machine Size(LxWxH) : 2300x1100x1650 mm
- Machine weight : 0.775 ton
- Vice clamping : Hydraulic
- Blade tension form : Manual
- Feeding cut adjust way : Hydraulic
- Feeding way : Manual
- Chip conveyor way : Manual
- Cooling way : Water cooling
- Voltage : 380V 50HZ 3Phase
Introduction to Band Saw Machine
