Automatic Egg Roll Making Machine – 8 Dual Heads

Description

Automatic Egg Roll Making Machine – 8 Dual Heads

SaleCNC offers Automatic Egg Roll Making Machines, Egg Roll Baking Ovens, and Ice Cream Cone Molds. This model features 8 dual heads for automated production.

SaleCNC distributes Automatic Egg Roll Making Machines, Egg Roll Baking Ovens, and Electric Ice Cream Cone Molds with 8 dual heads.

Machine Operation Video:

Machine Description:

(Egg roll making machine set does not include the egg roll cutting machine)

Product Specifications

1 Station requires 10A; 12 stations x 10A = 120A. Add 10A for motor drive, totaling 130A.

Calculated at 220V: approximately 130A * 220V = 28600W (28.6KW)

Roll diameter minimum is 16mm (1.6cm).

Auto Feed + Semi Roller are optional features.

Egg Roll Making Machine Set Includes:

1. Automatic Egg Roll Baking Oven

(Egg roll making machine set does not include the egg roll cutting machine)

2. Automatic Batter Dispensing Machine

3. Semi-Automatic Rolling Machine

(Egg roll making machine set does not include the egg roll cutting machine)

Versatile for various baked goods, including:

Sheet cakes, folded cakes, fresh coconut egg rolls, ice cream cones, ‘Ba Bin’ cake, seaweed wraps, waffles, and more.

Heating plate models can be selected, e.g., checkered, stripe, flat, sunflower.

Egg Roll Making Machine Features:

• ✅ Automatic temperature control system, batter dispensing, mold opening/closing, and heating elements.
• ✅ Capable of producing 500-800 pieces/hour or approximately 100 kg/hour, with 8 to 12 baking heads available based on requirements.
• ✅ Adjustable pressure, batter thickness, temperature, dispensing volume, and baking time.
• ✅ High-quality non-stick Teflon coating on baking plates. Plate size and pattern can be customized.
• ✅ Suitable for various products: egg rolls, crispy baked cakes, Chinese egg rolls, crispy waffles, ice cream cones, etc.

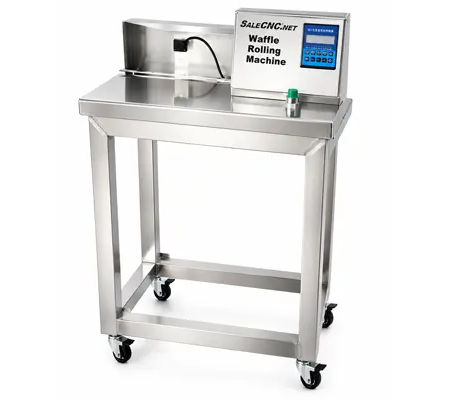

Semi-Automatic Rolling Machine

Automatic Batter Dispensing Machine

Product Introduction:
The machine consists of several independent baking molds. Automatic filling and die opening are controlled by a PLL system. It can be operated by one person or autonomously. Thickened aluminum heating plates ensure longevity, uniform heating, and high thermal efficiency. The temperature control system is modular, featuring an intuitive touchscreen interface and a fault isolation system that allows for the temporary stoppage of batter injection if a mold malfunctions, without affecting the operation of other molds. This machine is capable of producing not only egg rolls but also other baked goods such as pressed cakes, egg cakes, and mixed grain cakes. Upgraded machines can be equipped with automatic pick-up and packaging systems to reduce labor intensity and production costs. Machine molds are customizable, available in cast aluminum, A3 plate, cast iron, inlaid copper, and patterned designs according to customer specifications. The machine offers excellent safety performance and high operational efficiency, and is currently a leading choice for omelet production in the domestic market.
Installation and Operation:

1. Ensure the machine is reliably grounded before connecting to the power supply.

2. Connect the feeder to the dryer connector and signal input.

3. Connect the pneumatic hose to the filling machine (with cake pick-up device). Ensure the air source pressure is at 3 Pa.

4. The leakage protector should be connected to the neutral wire on the left side of the main power switch.

5. Each mold has a corresponding circuit breaker. If a mold fails, its breaker must be disconnected.

6. Upon powering on the machine, the touch screen will display the Home screen.

Safety Precautions:

• 1. Engage qualified personnel for installation. Connect the power cord to the main power switch (three-phase, four-wire system) as specified.
• 2. Always turn off the main power supply before performing maintenance to ensure the safety of maintenance personnel.
• 3. After the machine heats up, exercise caution to avoid contact with the molds to prevent burns and accidents.
• 4. Perform regular maintenance.
• 5. When the machine is not in operation, turn off all input power.
• 6. Ensure track wheels are fixed regularly.
• 7. In case of component failure, disconnect the corresponding mold’s power breaker when disabling its function.

Common Failures and Maintenance:

1. Inconsistent Refill: Check filler air pressure for normalcy and connection integrity.
2. Machine Noise: Inspect square support bearings and lubricate as needed.

Waffle Production

Kebab Wrap / Tortilla Production

Purple Egg Roll Production

Egg Roll Production

Sample Food Products from Automatic Egg Roll Making Machine
