Description

Conveyor Belt 201 Mesh

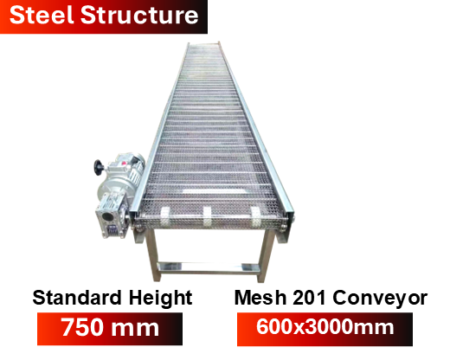

Stainless Steel 201 Mesh Type Conveyor Belt

Steel Structure (Fixed Height Adjustment)

• Conveyor belt for material handling, mesh type.
• Electric motor powered, with adjustable flow speed.
• Facilitates material transfer and organization; easy installation and operation.
• Standard height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 40 kg.
• Temperature resistance: -50°C to +200°C.

Mesh Belt is a type of conveyor belt constructed from interconnected wires or fibers forming a mesh pattern. This design promotes airflow or fluid passage. Mesh belts are commonly employed in applications requiring ventilation or heat dissipation, as well as for material transport in various industrial processes, particularly those involving drying or heating.

Mesh Belt Features and Applications:

1. Excellent Ventilation: The mesh structure provides gaps between wires, enabling effective airflow and heat dissipation.
2. High-Temperature Resistance: Mesh belts are suitable for high-temperature applications such as food drying or material baking.
3. Diverse Material Options: Mesh belts can be manufactured from various materials, including stainless steel, plated steel, or corrosion-resistant alloys.
4. Industrial Use: Widely utilized in the food industry (drying, baking), chemical processing, component manufacturing, and assembly lines requiring air circulation.

Example Products:

Motor with Inverter – Motor speed ratio: 30-40 meters/minute (Upgrade: +7500 Baht)

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Load Capacity: 3 kg (total belt).
• Price: 32,000 Baht.

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min; Adjustable Legs: 100 mm.
• Load Capacity: 3 kg (total belt).

• Conveyor Belt PU, Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Adjustable Legs: 100 mm.
• Load Capacity: 30 kg (total belt).

• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 20 kg (total belt).

• Conveyor Belt PU, Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg (total belt).

• Conveyor Belt PVC, Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg (total belt).

• Conveyor Belt PU, Stainless Steel 304 Frame: 500×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 30 kg (total belt).

• Conveyor Belt PU, Stainless Steel 304 Frame: 400×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 30 kg (total belt).

• Conveyor Belt PU, Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg (total belt).

• Steel Structure Stainless 304 Conveyor Solid Belt
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 40 kg (total belt).

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Load Capacity: 30 kg (total belt).

• Conveyor Mesh Belt, Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Load Capacity: 40 kg (total belt).

Conveyor Belt PVC Speed Specifications

England

Thai

Product on conveyor: approximately 30 kg

• Standard motor: 120W. Options: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications such as packaging or material transport of non-oily and non-greasy substances.
     ❌ Not resistant to high temperatures and may wear out faster than PU.
   • PU (Polyurethane)
     ✅ Better resistance to grease, oil, and chemicals than PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ More resistant to tearing and has a longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and abrasion.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavy.

2. Suitable Applications

   • PVC → General cargo transport, such as packaging and electronics.
   • PU → Food and pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high cleanliness or in environments with high heat or humidity, such as food and beverage processing plants, and heavy industry.
