รายละเอียดเพิ่มเติม

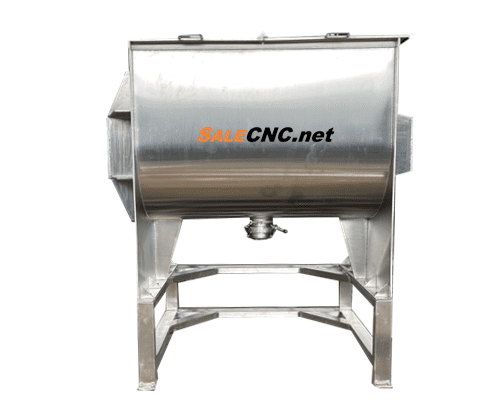

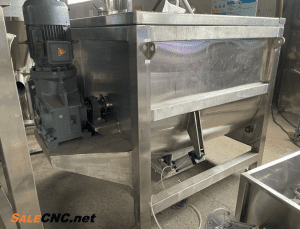

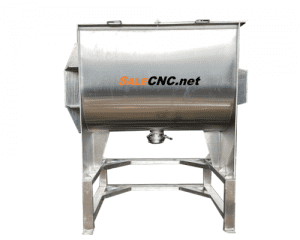

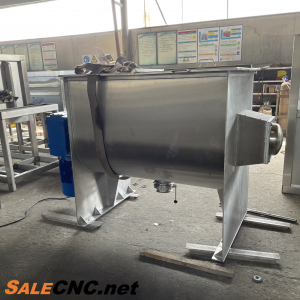

เครื่องผสมอาหาร เครื่องผสมผง เครื่องนวดผสม เครื่องนวดแป้ง
ขนาด 2000L (Mixer Machine)
Specifications : ราละเอียดของเครื่องผสมอาหาร เครื่องผสมผง เครื่องนวดผสม เครื่องนวดแป้ง 2000L (Mixer Machine)
#English
✅ Horizontal mixer: Suitable for mixing and stirring of powdered material
✅ Equipment Material: Material contact surface is 304 stainless steel fabrication Other 201 Stainless Steel
✅ Bucket size: 1800x1100x1200mm
✅ External Dimensions (Length x Width x Height) : 2550x1200x2200mm
✅ Bucket volume: 2000L
✅ Barrel thickness: 6mm in the middle, 8mm in the left and right
✅ Stirring spindle: Ø76mm hollow shaft
✅ Blade type: Uniaxial double screw belt
✅ Blade thickness: 60x10mm
✅ Stirring power: 11KW-380V-50HZ-4 Level
✅ Reducer type: Direct-attached gear reducer
✅ Spindle speed: 25 RPM
✅ Sealing: Polyfluorene + Standard Oil Seal
✅ Source: Ø159 manual insert valve
✅ Exit height: 700mm above ground
✅ Electrical accessories: Delivery belt front and rear switch
#ภาษาไทย
✅ ลักษณะของเครื่อง: เป็นเครื่องผสมแนวนอน เหมาะสำหรับการผสมและกวนวัสดุที่เป็นผง
✅ วัสดุอุปกรณ์: พื้นผิวสัมผัสของวัสดุเป็นสแตนเลส 304, สแตนเลส 201 อื่น ๆ
✅ ขนาดถัง: 1800x1100x1200mm
✅ ขนาดภายนอก (ยาว x กว้าง x สูง) : 2550x1200x2200mm
✅ ปริมาณถัง: 2000L
✅ ความหนาของถัง: 3mm ตรงกลาง, 3mm ทางซ้ายและขวา
✅ แกนหมุนกวน: Ø76mm เพลากลวง
✅ ประเภทใบมีด: สายพานสกรูคู่แกนเดียว
✅ ความหนาของใบมีด: 60x10mm
✅ กำลังกวน: 11KW-380V-50HZ-4 ระดับ
✅ ประเภทตัวลดความเร็ว: ZQ400
✅ ความเร็วแกนหมุน: 25RPM
✅ ประเภทของตัวลด: ตัวลดเกียร์แบบติดตรง
✅ ซีล: โพลีฟลูออรีน + ซีลน้ำมันมาตรฐาน
✅ วาล์ว: Ø159 วาล์วแทรกแบบแมนนวล
✅ ความสูงทางออก: 700mm เหนือพื้นดิน
✅ อุปกรณ์ไฟฟ้า: สวิตช์สายพานหน้าและหลัง
