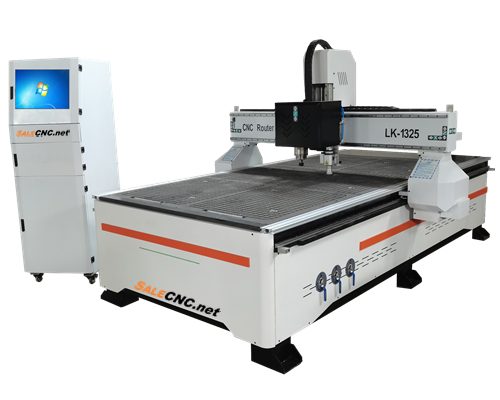

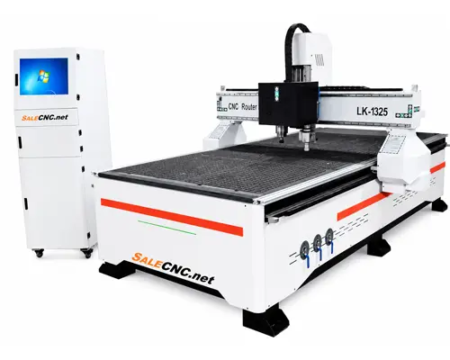

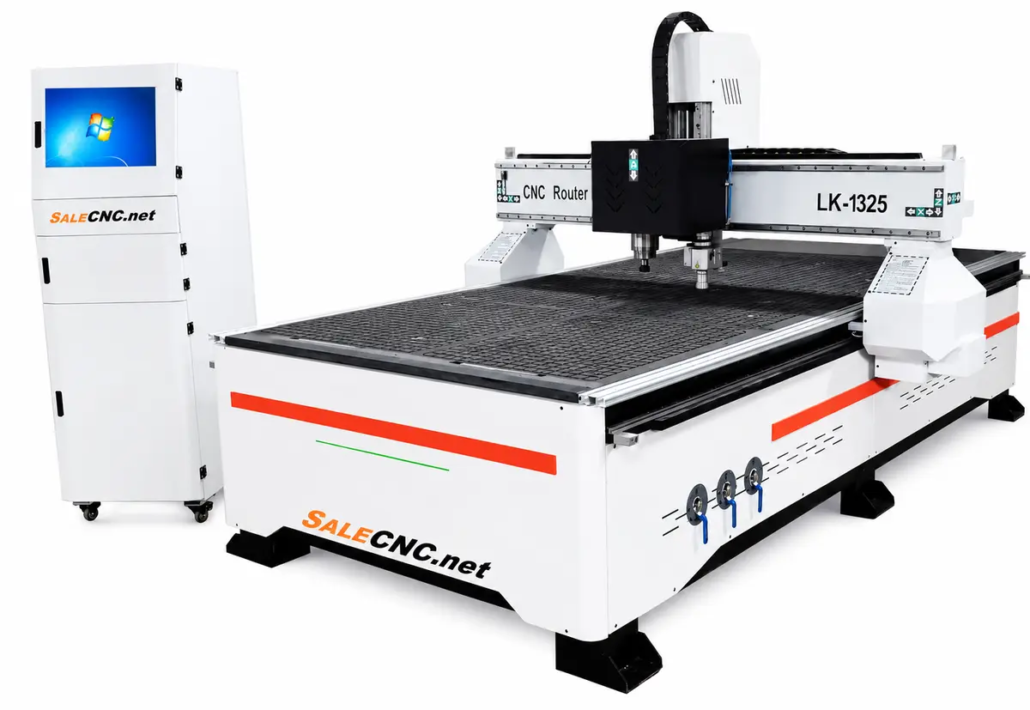

CNC Blade (Knife) 4 axis+ Router Milling 2 in One
model LK-1325
CNC Router Milling Machine ซีเอ็นซี เครื่องเร้าเตอร์ มิลลิ่ง รุ่น LK-1325 CNC Blade (Knife) 4 axis + Router Milling 2 in 1 ขนาดเครื่อง 1300×2500มม. ควบคุมด้วย G-code เป็นเครื่องตัดที่ควบคุมด้วยคอมพิวเตอร์ซึ่งขึ้นอยู่กับอุปกรณ์การเชื่อมต่อแบบพกพาที่จะใช้สำหรับการตัดวัสดุเนื้อแข็งต่าง ๆ เช่น ไม้ วัสดุที่ประกอบด้วยการรวมวัสดุมากกว่า 2 ประเภทเข้าด้วยกัน (คอมโพสิต) อลูมิเนียม เหล็ก พลาสติก แก้ว และโฟม การควบคุมเชิงตัวเลขด้วยคอมพิวเตอร์สามารถทำงานต่าง ๆ ของเครื่องจักรในร้านค้าไม้ต่าง ๆ เช่น แท่นเลื่อย (panel saw) เครื่องปั่นแกนหมุน (spindle moulder) และเครื่องเจาะ (boring machine) เครื่องจักรเหล่านี้ยังสามารถตัดเป็นร่อง และเดือยได้อีกด้วย
✅ Blade (Knife) 4 axis
✅ Suitable for knives 3.175mm 4mm 6mm 8mm 10mm 12.7mm
✅ Main pumping power 3.2KW (water cooling)
Machine dimension – มิติของเครื่อง CNC Router Milling LK-1325
✅ External dimensions of wooden box 3250x2250x1850mm
✅ XY axis stroke 1300x2500mm
✅ Z-axis stroke 200mm
✅ Transmission mode XY rack drive screw
✅ Guide rail Square rule
Specification – รายละเอียดของ CNC Router Milling LK-1325
Model | LK-1325 |
---|---|
XY axis stroke | 1300x2500mm |
Z-axis stroke | 200mm |
Transmission mode | XY rack drive screw |
Guide rail | Square rule |
Tabletop | Aviation aluminum T-slot |
X, Y, and Z configurations | XY rack, Z screw |
Maximum feed height | 200mm |
Maximum idle speed | 0-25000mm/min |
Engraving velocity | 0-12000mm/min |
Mode of movement | Gantry move |
Clamping | ER20 |
Machine accuracy | 0.003mm |
Repeat positioning | 0.005mm |
Diagonal error | 0.2 |
Correlation humidity | 30%-75% |
External dimensions of wooden box | 3250x2250x1850mm |
Transmission mode | Xinbao reducer |
Engraving instructions | G code |
Software operating environment | Windows xp |
Main pumping power | 3.2KW (water cooling) |
Main pumping speed | 0-24000rpm |
Spindle tool | Ø3 Ø4 Ø6 Ø12.7 |
Drive way | Leisai 758 Hybrid Private Server Motor |
Control System | Ma Ke Vibrating Knife System |
Operating Voltage | AC220V/380V 50HZ |
Driver | Lei Sai 758 |
Guide | Straight line rule on silver |
Suitable for knives | 3.175mm 4mm 6mm 8mm 10mm 12.7mm |
Engraving instructions | G code*u00*mmg*plt*HPGL |
Design software | Wentai, Jingdiao, ArtcamJDPain TYPE3 |
Operating temperature environment | 0-45C° |
Bed frame | 3.5 thick bed |
Material | Square tube bracket bed, cast iron column, cast aluminum machine head, 8mm beam |
CNC Blade Knife Parts can cut:
Controller – ระบบคอลโทรลเลอร์ของ CNC Router Milling LK-1325
✅ Machine accuracy 0.003mm
✅ Repeat positioning 0.005mm
✅ Mode of movement Gantry move
✅ Operating temperature environment 0-45C°
