เครื่องสไลด์อัตโนมัติ เครื่องสไลด์หมู เครื่องตัดเนื้อแบบตั้งโต๊ะ

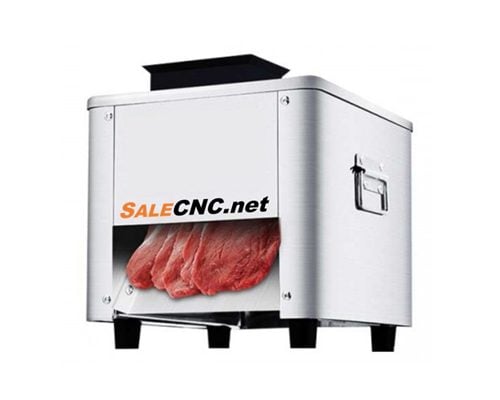

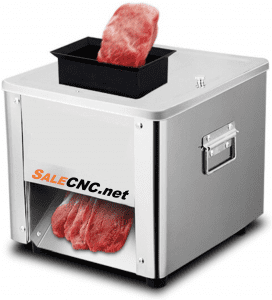

Automatic Meat Slicer Commercial
Desktop slicing machine is a successful product developed by our company. The product can cut pork, beef, mutton and other kinds of fresh meat, and the sliced meat is moderately thick and cooked. This series of products has structural compact paint, running balance, luxurious styling, safety and reliability, High efficiency and simple operation are ideal utensils for hotels, dinners, canteens and food processing plants.
เครื่องสไลด์เนื้อแบบตั้งโต๊ะ เป็นผลิตภัณฑ์สามารถหั่นหมู เนื้อวัว เนื้อแกะ และเนื้อสัตว์สดชนิดอื่นๆ และเนื้อสไลซ์มีความหนาปานกลางและใช้เนื้อปรุงสุกได้ด้วย เครื่องสไลด์หมูมีโครงสร้างกะทัดรัด สไตล์หรูหรา มีความปลอดภัยและความน่าเชื่อถือ ประสิทธิภาพสูง และใช้งานง่าย เหมาะสำหรับโรงแรม อาหารเย็น โรงอาหาร และโรงงานแปรรูปอาหาร
🔵 Technical Parameters
Speed of cutter production : 165 kg/h
Motor : 330 r/min
Power supply : 850 W
Voltage : 220/110 V
Contour dimensions : 400x300x300 mm
Whole weight : 23 kg
🔵 พารามิเตอร์ทางเทคนิค
ความเร็วในการผลิตใบมีด : 165 กก./ชม.
มอเตอร์ : 330 รอบ/นาที
แหล่งจ่ายไฟ : 850 วัตต์
แรงดันไฟฟ้า : 220/110 โวลต์
ขนาดรูปร่าง : 400x300x300 มม.
น้ำหนักทั้งหมด : 23 กก.

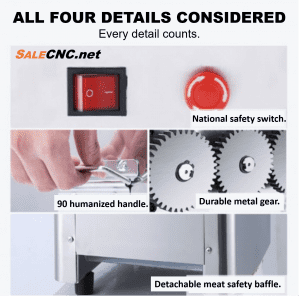

🔵 All four details considered
Every detail counts.
✅ National safety switch
✅ 90 Humanized Handle
✅ Durable metal gear
✅ Detachable meat safety baffle
🔵 4 รายละเอียดสำคัญที่ควรพิจารณา
✅ สวิตช์ป้องกันความปลอดภัย
✅ 90 Humanized Handle
✅ เกียร์โลหะทนทาน
✅ แผ่นกั้นป้องกันเนื้อที่ถอดออกได้

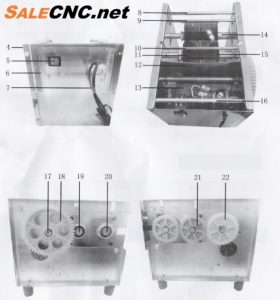

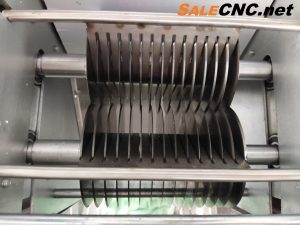

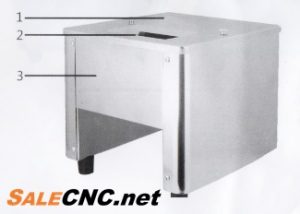

🔵 Component Designation
1. top cover
2. Inlet
3. Front cover plate
4. Left and right lids
5. Switch
6. Rear cover
7. Wires
8. Double-headed Rose
9. Passive comb
10.Active Knife
11. Subjective Knife Shaft
12. Waterproof baffles
13. Electrical machines
14. Active tool shaft
15. Blade
16. Rose
17. The propeller shaft
18. Large Gear
19. 6003 bearing
20. 6003 bearing
21. Small Gear
22. Medium gear
🔵 ส่วนประกอบของเครื่องสไลด์เนื้อ
1. ฝาครอบด้านบน
2. ทางเข้า
3. แผ่นปิดด้านหน้า
4. ฝาซ้ายและขวา
5. สวิตช์
6. ฝาครอบด้านหลัง
7. สายไฟ
8. กุหลาบสองหัว
9. หวีแบบพาสซีฟ
10. มีดแอคทีฟ
11. เพลามีดอัตนัย
12. แผ่นกั้นกันน้ำ
13. เครื่องจักรไฟฟ้า
14. เพลาเครื่องมือแอคทีฟ
15. ใบมีด
16. โรส
17. เพลาใบพัด
18. เกียร์ใหญ่
19. 6003 แบริ่ง
20. 6003 แบริ่ง
21. เกียร์เล็ก
22. เกียร์กลาง
🔵 Figure and Description of Use
1. Check the power supply before use. The voltage should meet the prescribed requirements and the outlet should be equipped with reliable grounding wire.
2. Wash thoroughly before use. Remove the upper lid, remove the knife and gun. Wash the parts in hot water.
3. Remove skin and bone before cutting meat and cut it into strips. The size should be smaller than the intake. First-time meat cutlet. The second was shredded meat and repeatedly minced meat.
4. Wash after use to avoid bacterial growth. The cleaning method is carried out in accordance with the second rule. After the cleaning method is completed, the cleaning method should be carried out in the grease with suitable cooking oil.
🔵 การใช้งานเบื้องต้นของเครื่องสไลด์เนื้อ
1. ตรวจสอบแหล่งจ่ายไฟก่อนใช้งาน แรงดันไฟฟ้าควรเป็นไปตามข้อกำหนดที่กำหนด และเต้าเสียบควรติดตั้งสายดินที่เชื่อถือได้
2. ล้างให้สะอาดก่อนใช้งาน ถอดฝาด้านบนออก นำมีดและปืนออก ล้างชิ้นส่วนในน้ำร้อน
3. ลอกหนังและกระดูกออกก่อนหั่นเนื้อแล้วหั่นเป็นเส้น ขนาดควรจะเล็กกว่าการบริโภค เนื้อชิ้นแรก ชิ้นที่สองคือเนื้อฝอยและเนื้อสับซ้ำๆ
4. ล้างหลังการใช้งานเพื่อหลีกเลี่ยงการเจริญเติบโตของแบคทีเรีย วิธีการทำความสะอาดจะดำเนินการตามกฎข้อที่สอง หลังจากวิธีการทำความสะอาดเสร็จสิ้นแล้ว ควรดำเนินการวิธีการทำความสะอาดในจาระบีด้วยน้ำมันปรุงอาหารที่เหมาะสม
🔵 Points to Note
1. For single-phase motors, the voltage fluctuation must be greater than 10% of the rated voltage, otherwise a voltage stabilizer must be provided for use.” If a three-phase motor is to be used, remove the striped three-way, energize the test, and correct the steering so that the motor is to be turned in the same direction as the arrow.”
2. The cutting time should not exceed 2 minutes to prevent the blade from rubbing against the heat and burning.
3. It is strictly prohibited to put your hand into the feed and feed ports while operating.
4. Care should be taken in loading, unloading and cleaning to prevent accidental injury.
5. During cleaning and maintenance, the power must be cut off. Water jetting into the motor area is strictly prohibited.
🔵 ข้อควรระวัง
1. สำหรับมอเตอร์แบบเฟสเดียว ความผันผวนของแรงดันไฟฟ้าต้องมากกว่า 10% ของแรงดันไฟฟ้าที่กำหนด มิฉะนั้น ต้องมีตัวปรับแรงดันไฟฟ้าให้ใช้งานได้ “ถ้าจะใช้มอเตอร์สามเฟส ให้ถอดแบบสามทางออก เพิ่มพลังการทดสอบ และแก้ไขการบังคับเลี้ยวเพื่อให้มอเตอร์หมุนไปในทิศทางเดียวกับลูกศร”
2. เวลาในการตัดไม่ควรเกิน 2 นาทีเพื่อป้องกันไม่ให้ใบมีดถูกับความร้อนและการเผาไหม้
3. ห้ามเอามือเข้าไปในพอร์ตฟีดและฟีดขณะใช้งานโดยเด็ดขาด
4. ควรใช้ความระมัดระวังในการใช้งาน และการทำความสะอาดเพื่อป้องกันการบาดเจ็บจากอุบัติเหตุ
5. ระหว่างทำความสะอาดและบำรุงรักษา ต้องตัดไฟ ห้ามฉีดน้ำเข้าไปในบริเวณมอเตอร์โดยเด็ดขาด

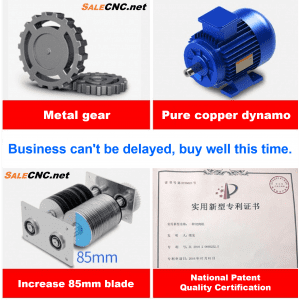

🔵 Business can’t be delayed. Buy well this time. สิ่งอำนวยความสะดวก ไม่ได้คุณทำธุรกิจล่าช้า
✅ Metal gear : เกียร์โลหะ
✅ Pure copper dynamo : ไดนาโมทองแดงบริสุทธิ์
✅ Increase 85mm blade : เพิ่มใบมีด 85 มม.
✅ National Patent Quality Certification : การรับรองคุณภาพสิทธิบัตรแห่งชาติ
🔵 Slice-cutting effect. การประยุกต์ใช้งานเครื่องสไลด์เนื้อ
✅ Fillet of fish : เนื้อปลา
✅ Pig’s earpiece : หูหมู
✅ Pork cutlet : หมูทอด
✅ Shredded green pepper : พริกหยวกหั่นฝอย
✅ Shredded tofu : เต้าหู้ฝอย
✅ Shredded potato : มันฝรั่งหั่นฝอย

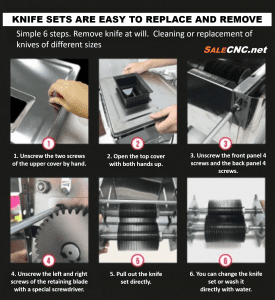

🔵 Knife sets are easy to replace and remove
Simple 6 steps. Remove knife at will. Cleaning or replacement of knives of different sizes.
1. Unscrew the two screws of the upper cover by hand.
2. Open the top cover with both hands up.
3. Unscrew the front panel 4 screws and the back panel 4 screws.
4. Unscrew the left and right screws of the retaining blade with a special screwdriver.
5. Pull out the knife set directly.
6. You can change the knife set or wash it directly with water.
🔵 ชุดมีดเปลี่ยนและถอดได้ง่าย
ง่ายๆ 6 ขั้นตอน ถอดมีดออกได้ตามต้องการ การทำความสะอาดหรือเปลี่ยนมีดขนาดต่างๆ
1. คลายเกลียวสกรูสองตัวของฝาครอบด้านบนด้วยมือ
2. เปิดฝาด้านบนด้วยมือทั้งสองข้าง
3. คลายเกลียวสกรูที่แผงด้านหน้า 4 ตัว และสกรูที่แผงด้านหลัง 4 ตัว
4. คลายเกลียวสกรูด้านซ้ายและขวาของใบมีดด้วยไขควงพิเศษ
5. ดึงชุดมีดออกโดยตรง
6. คุณสามารถเปลี่ยนชุดมีดหรือล้างด้วยน้ำโดยตรง
🔵 Maintenance
1. meat-cutting time. Do not exceed 2 minutes to prevent blade friction. The edge of a knife for a hot burn
2. Strict start-up operation. Do not put your hand into the feed and outlet openings.
3.Unloading and cleaning knives. Care must be taken to prevent accidental injury.
4. For the sake of safety, Water must be kept from splashing into the motor area during cleaning and maintenance.
5. Always check the power supply. There are any defects in the wire so as not to hurt others by electricity leakage.
6. Long-term use should be maintained. Keep dry areas to prevent corrosion of components table-type meat slicing machine.
🔵 การบำรุงรักษาเบื้องต้น
1. เวลาในการตัดเนื้อ ห้ามเกิน 2 นาทีเพื่อป้องกันการเสียดสีใบมีดขอบมีดสำหรับการเผาไหม้ร้อน
2. เริ่มต้นใช้งานอย่างระมัดระวัง อย่าวางมือลงในช่องป้อนและทางออก
3. การขนถ่ายและทำความสะอาดมีดต้องใช้ความระมัดระวัง เพื่อป้องกันการบาดเจ็บจากอุบัติเหตุ
4. เพื่อความปลอดภัย น้ำต้องไม่ให้กระเด็นเข้าสู่บริเวณมอเตอร์ระหว่างการทำความสะอาดและบำรุงรักษา
5. ตรวจสอบแหล่งจ่ายไฟอย่างสม่ำเสมอ หากมีข้อบกพร่องใด ๆ ที่สายไฟ เพื่อไม่ให้เกิดอันตรายต่อผู้อื่นจากไฟฟ้ารั่ว
6. ควรรักษาการใช้งานในระยะยาว เก็บบริเวณที่แห้ง เพื่อป้องกันการกัดกร่อนของส่วนประกอบเครื่องหั่นเนื้อแบบตั้งโต๊ะ
🔵 Daily Maintenance
1. After each use, the components of the minced meat and cut meat should be cleaned and the body cleaned. Grease the comb with cooking oil to prevent rusting of the blades.
2. Always check the power cord for defects to avoid electric leakage.
3. Keep dry areas long-term to avoid rusting of candle parts.
🔵 การบำรุงรักษาแบบรายวัน
1. หลังการใช้งานแต่ละครั้ง ควรทำความสะอาดส่วนประกอบของเนื้อสับ เนื้อหั่น และทำความสะอาดร่างกาย หล่อลื่นหวีด้วยน้ำมันสำหรับประกอบอาหารเพื่อป้องกันการเกิดสนิมของใบมีด
2. ตรวจสอบสายไฟเพื่อหาข้อบกพร่องเพื่อหลีกเลี่ยงไฟฟ้ารั่ว
3. เก็บบริเวณที่แห้งไว้เป็นเวลานานเพื่อหลีกเลี่ยงการเกิดสนิมของชิ้นส่วนเทียน
