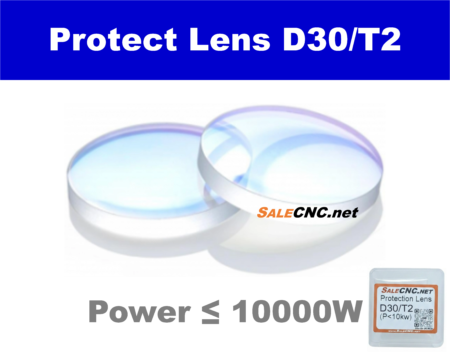

Laser Protection Lens D30/T2
High-focus and stable lenses for Fiber Lasers. Durable, high-quality construction.
Available Sizes

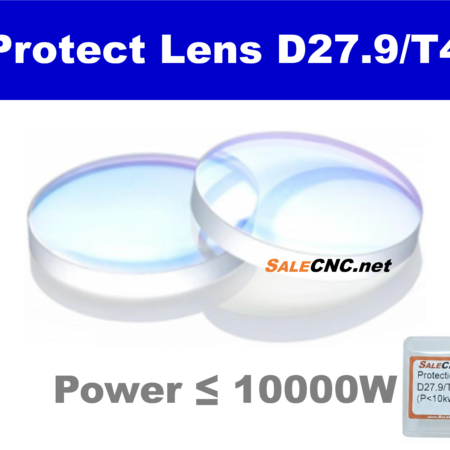

20*2/3/5, 22.35*4, 25*1.5/2/3, 28*4(27.9*4.1), 30*1.5/2/3, 30*4/5, 34*5, 35*4, 36*2, 37*7(8000-15000W), 40*3, 40*5, 50*2
Specifications
- Material: Imported JGS1
- Diameter Tolerance: +0 / -0.1 mm
- Thickness Tolerance: +/- 0.1 mm
- Coating: 1064nm AR coated on both sides, T> 99.8%
- Surface Finish: 40/20 (D≤50.8mm), 60/40 (D＞ 50.8mm)
- Parallelism: 10′-1 ‘
- Surface Accuracy: λ / 4
- High Damage Threshold: > 15J / cm2
